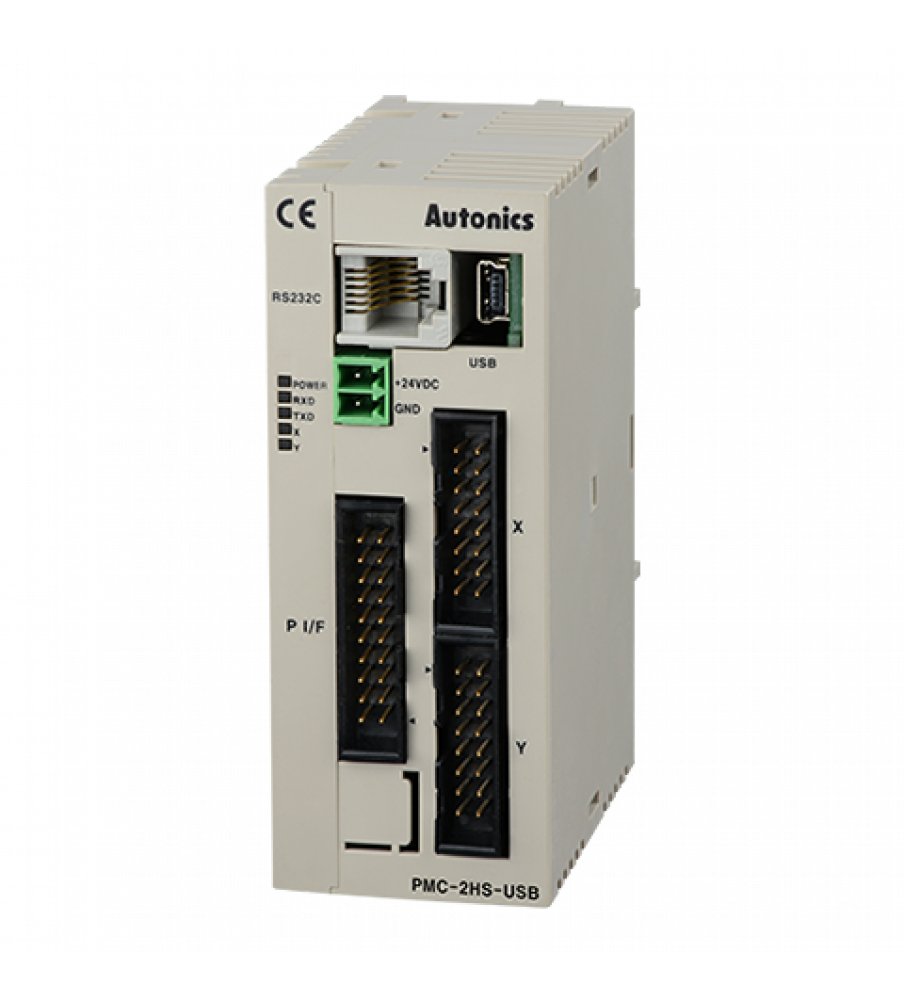

Data sheet?
| Number Of Axes | 2-axis |
|---|---|
| Type | Independent type |
| Input/Output Contact | Parallel I/F: 13/4 X-axis: 8/5 (general: 0/1) Y-axis: 8/5 (general: 0/1) |
| Operation mode | INDEX, PROGRAM(64-step), JOG, CONTINUOUS |
| In-Position Setting | ABSOLUTE, INCREMENTAL |
| Drive Speed | 1 pps to 4 Mpps |
| Connection method | RS232C, USB |
| Communication Protocol | Autonics protocol |
| Power supply | 24VDC  |
| Approval |  |
| Index step numbers | 64 indexes per axis |
| Inposition range | -8,388,608 to 8,388,607 (supports pulse scaling function) |
| Drive speed numbers | 1 pps to 4 Mpps (1 to 8,000 ? magnification 1 to 500) |
| Accessories_Common | User manual, CD |
| Accessories_Power connector | [CN1] MC1, 5/2-ST-3.5(PHOENIX): 1 |
| Accessories_RS232C connector | [CN2] RS-232C communication cable (1.5m): 1 |
| Accessories_P I/F connector | [CN3] 20P MIL standard, 2.54mm connector: 1 |
| Accessories_X axis input/output connector | [CN4] 16P MIL standard, 2.54mm connector: 1 (In case of 2HS, using 2) |
| Accessories_Y axis input/output connector | [CN5] 16P MIL standard, 2.54mm connector: 1 |
| Accessories_USB connector | USB Communication cable(1m): 1 |
| Environment_Ambient temperature | 0 to 45??/td> |
| Environment_Ambient humidity | 35 to 85% RH |
| Weight | Approx. 432.2g(approx. 100.4g) |
??he weight includes packaging. The weight in parenthesis is for unit only.
??nvironment resistance is rated at no freezing or condensation.
| Motion Controller | |
| Control axis | 2 Axis |
| Communication | USB/ RS232C |
| Output for Common | 2 point |
