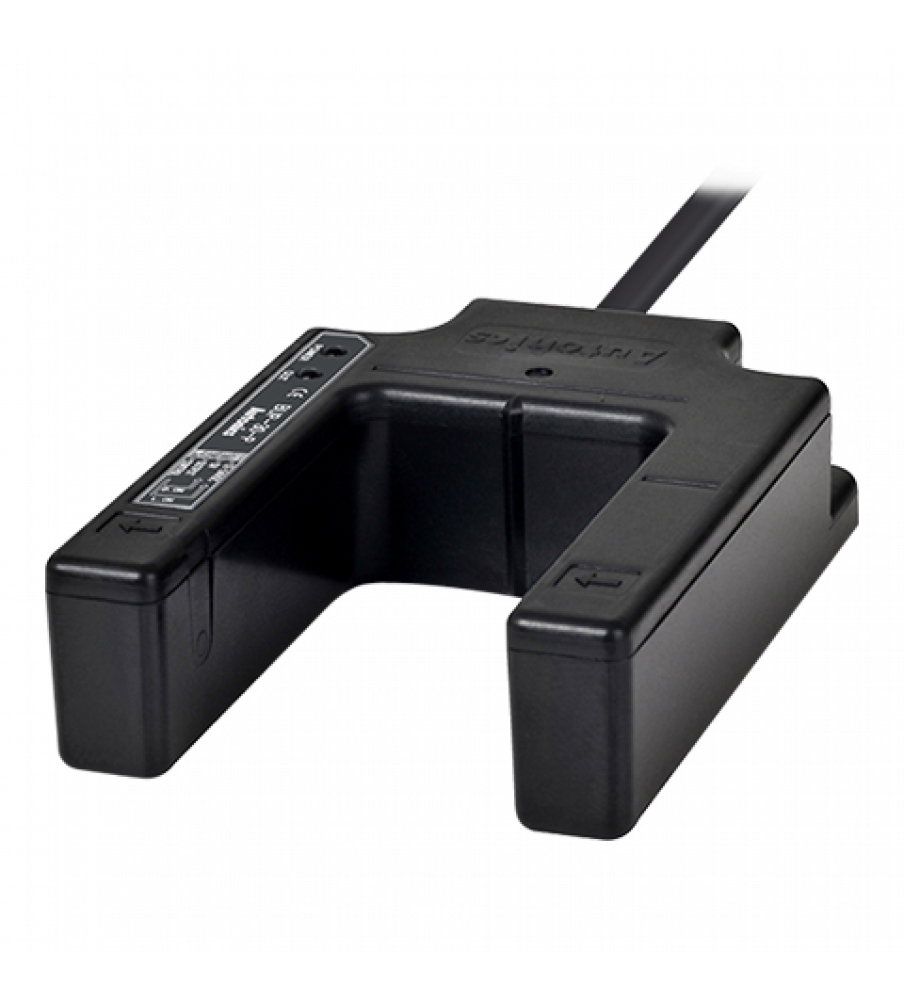

Sensor, Photo, Plastic Case, Slot Style, Fixed Sensitivity, Light & Dark On, PNP Output, 12-24 VDC
| Photoelectric Sensor | |
| Sensing type | Through-beam type |
| Sensing distance | 30 mm |
| Response speed | Opaque material of min. Ø4mm |
| Light Source | Infrared LED(940nm) |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | NPN open collector |
| Connection | Cable type(Ø4, 2m) |
