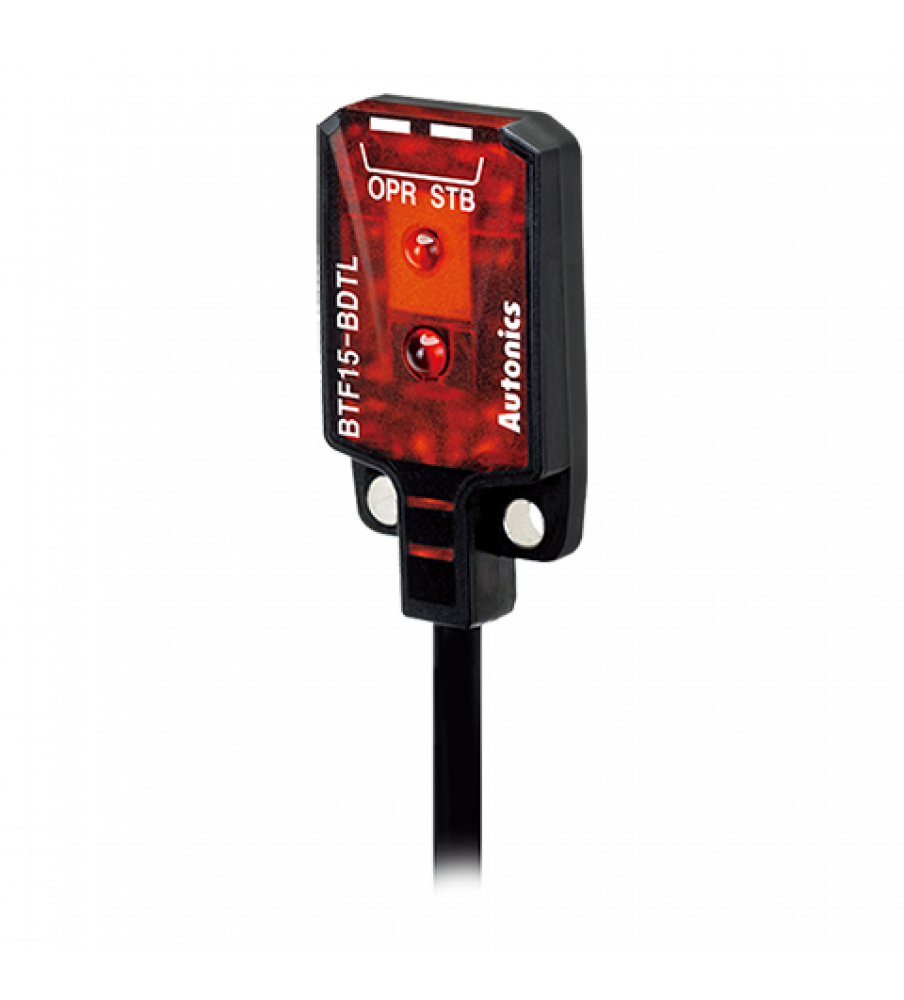

Sensor, Photo, BGS Reflective, 1~15mm Sensing Distance, Light On, NPN Output, 12-24VDC
| Photoelectric Sensor | |
| Sensing type | Background Suppressor Reflective |
| Sensing distance | 1 - 15 m |
| Response speed | Opaque, Translucent material(min. sensing target: non-illuminated objects of Ø0.2mm) |
| Light Source | Red LED (650 nm) |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Operation mode | Dark ON |
| Control output | NPN open collector |
| Connection | Cable type(Ø2.5, 2m) |
