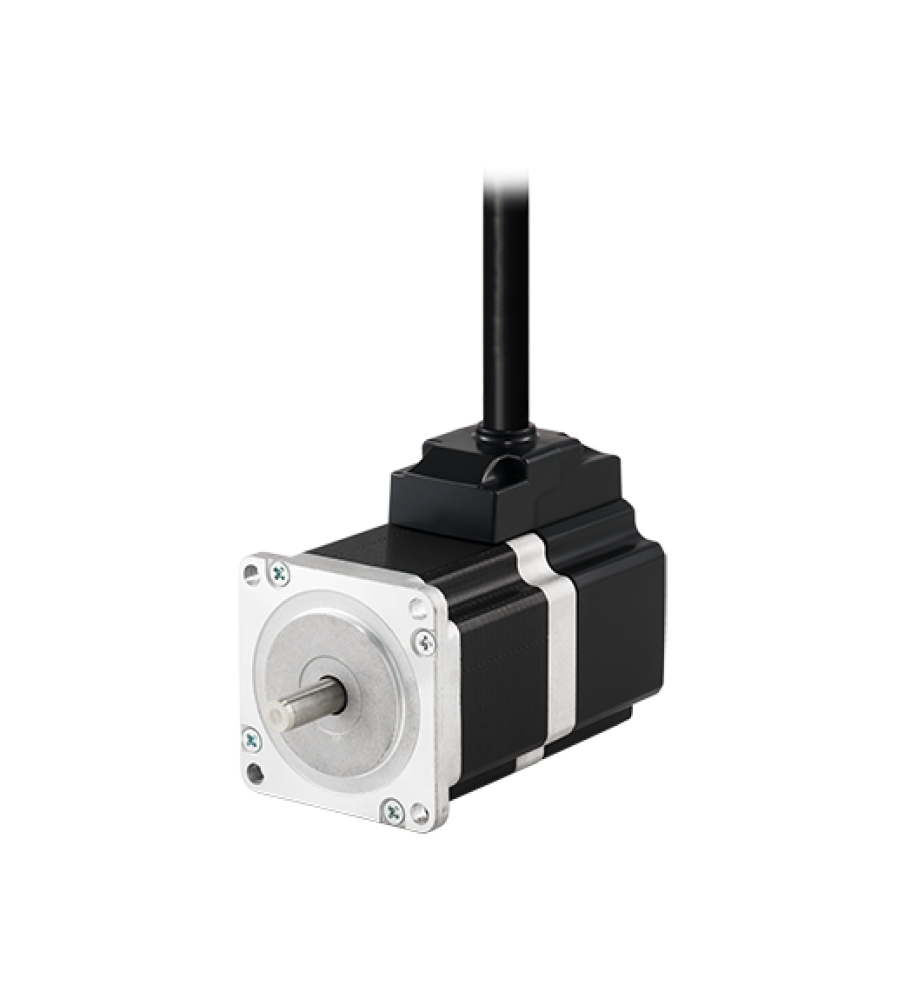

EtherCAT 2Phase Closed-loop Stepper Motor, 3.5A/Phase, 1.24N.m
Data sheet
| Max. holding torque | 1.24A |
|---|---|
| Rotor Moment Of Inertia | 245?10-7kg.m? |
| Rated current | 3.5A/Phase |
| Basic Step Angle [FULL/HALF] | 1.8?/0.9? |
| Winding Resistance | 0.55? |
| Inductance | 2.0 mH/Phase |
| Unit weight (packaged weight) | ??0.71 kg (??0.91 kg) |
| Motor length | 54.5mm |
| Shaft type | Single shaft |
| Operation method | Bipolar |
| Resolution | 10,000PPR(2,500PPR?4-multiply) |
| Output phase | A,? , B,? , Z,? |
| Max. response frequency | 300kHz |
| Protection structure | IP30 |
| Approval |  |
| Motor phase | 2-Phase |
| Number Of Axes | 1-axis |
| Environment_Ambient temperature | 0 to 50?? storage: -20 to 70??/td> |
| Motor_Environment_Ambient humidity | 20 to 85%RH, storage: 15 to 90%RH |
| Motion Devices | |
| Basic Step Angle [FULL/HALF] | 1.8/0.9 |
| Max. holding torque | 1.24A |
| Rotor Moment Of Inertia | 245x10-7kg.m2 |
| Winding Resistance | 0.55amp |
| Rated current | 3.5A/Phase |
| Operation method | Bipolar |
| Resolution | 10,000PPR(2,500PPRx4-multiply) |
| Protection structure | IP30 |
