AiC-D-35MB-EC

AiC-D-35MB-EC

0 reviews Write a review
  • Brand: Autonics
  • Product Code:
  • Availability: 0

  • $693.00

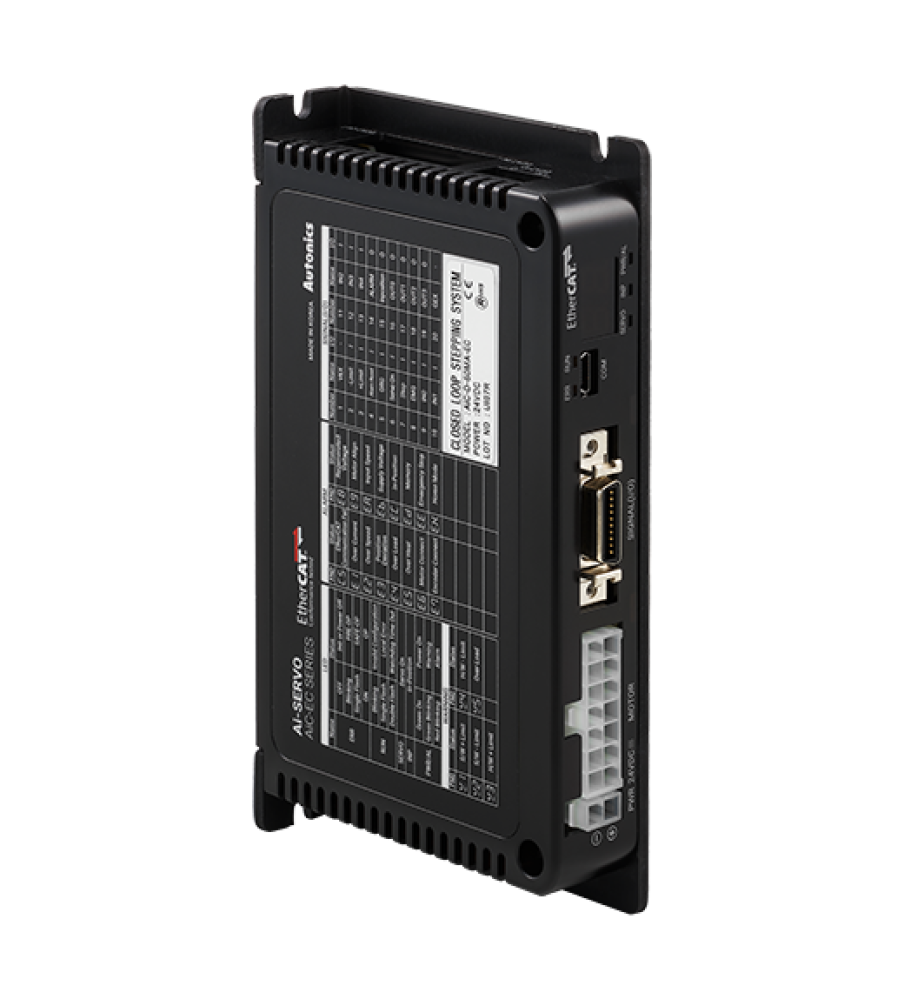

EtherCAT 2Phase Closed-loop Stepper Driver, 1.2A/Phase, 24VDC, ( Req. Ai-M-35MB Motor )

Data sheet

Driver_Applied MotorFrame size 35mm, shaft type, 2-phase closed-loop stepper motor(Ai-M-35MB)
Driver_Resolution500, 1000, 1600, 2000, 3600, 5000, 6400, 7200, 10000 (factory default), 16000 PPR
Driver_Power supply24VDC?
Driver_Max. Run Current1.0A/Phase
Driver_Max. Power consumption60W
Driver_Protection structureIP20(IEC standard)
Driver_Approval??
Motor_Environment_Ambient temperature0 to 50?? storage: -10 to 60??/td>
Motor_Environment_Ambient humidity 35 to 85%RH, storage: 10 to 90%RH
Motor_Weight??350 g (??500 g)
Motion Devices
Driver_Applied Motor Frame size 35mm, shaft type, 2-phase closed-loop stepper motor(Ai-M-35MB)
Driver_Resolution 500, 1000, 1600, 2000, 3600, 5000, 6400, 7200, 10000 (factory default), 16000 PPR
Driver_Power supply 24VDC
Driver_Max. Run Current 1.2A/Phase
Driver_Max. Power consumption 60W
