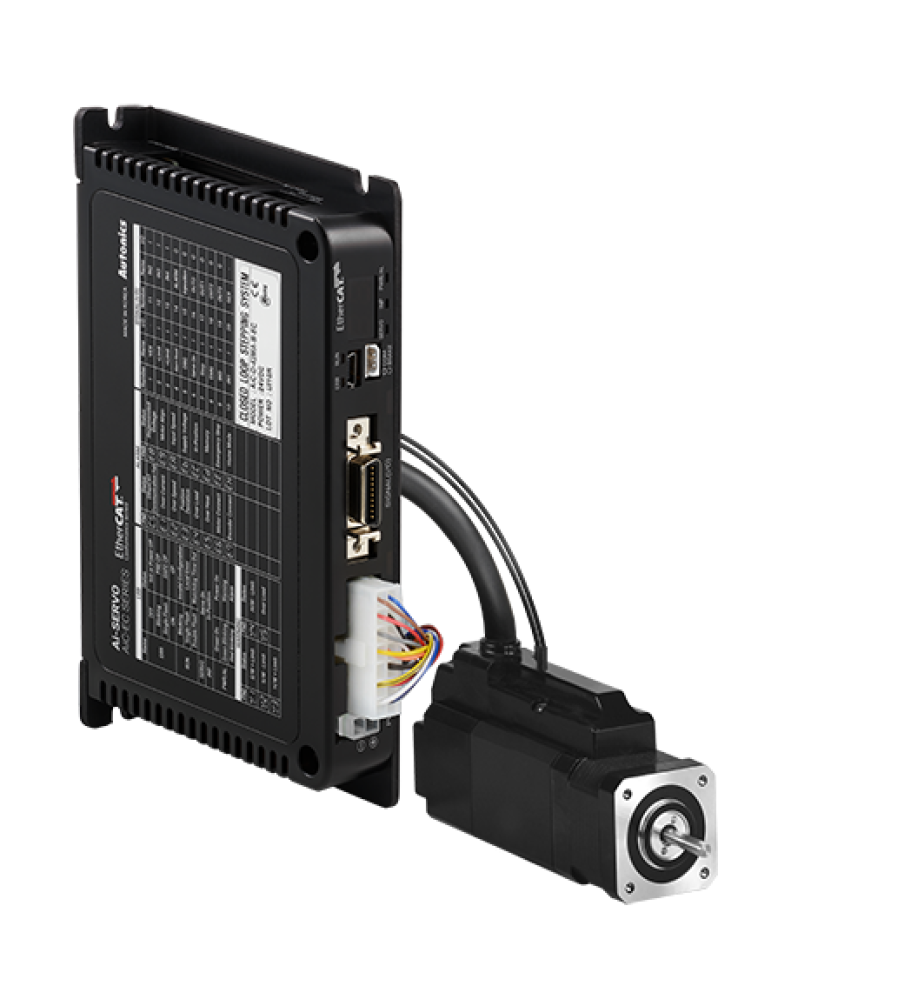

EtherCAT 2Phase Closed-loop Stepper Driver(AiC-D-42MA-EC,1.7A/Phase, 24VDC) & Motor (Ai-M-42MA-V2, 0.373N.m), Built-in brake.
Data sheet
| Driver_Applied Motor | Frame size 42mm, shaft type, built-in brake type 2-phase closed-loop stepper motor(Ai-M-42MA-B) |
|---|---|
| Driver_Resolution | 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000(factory default) PPR |
| Driver_Power supply | 24VDC? |
| Driver_Max. Run Current | 1.7A/Phase |
| Driver_Max. Power consumption | 60W |
| Driver_Protection structure | IP20 |
| Driver_Approval |  ? ? |
| Motor_Basic Step Angle [FULL/HALF] | 1.8?/0.9? |
| Motor_Max. Holding Torque | 4.08kgf.cm |
| Motor_Rotor Moment Of Inertia | 54g?cm? |
| Motor_Winding Resistance | 1.85? |
| Motor_Rated Current | 1.7A/Phase |
| Motor_Motor length | 39.9mm |
| Motor_Shaft Type | Single shaft |
| Motor_Operation Method | Bipolar |
| Motor_Resolution | 10,000PPR(2,500PPR?4-multiply) |
| Motor_Output phase | A,? , B,? , Z,? |
| Motor_Max. response frequency | 300kHz |
| Motor_Protection structure | IP30 |
| Motor_Approval | |
| Motor phase | 2-Phase |
| Driver_Environment_Ambient temperature | 0 to 50?? storage: -10 to 60??/td> |
| Driver_Environment_Ambient humidity | 35 to 85%RH, storage: 10 to 90%RH |
| Driver_Unit weight(packaged) | ??350 g (??500 g) |
| Motor_Number Of Axes | 1-axis |
| Motor_Environment_Ambient temperature | 0 to 50?? storage: -20 to 70??/td> |
| Motor_Environment_Ambient humidity | 20 to 85%RH, storage: 15 to 90%RH |
| Motor_Weight | Approx.0.83kg (approx. 0.73kg) |
| Motion Devices | |
| Driver_Applied Motor | Frame size 42mm, shaft type, built-in brake type 2-phase closed-loop stepper motor(Ai-M-42MA-B) |
| Driver_Resolution | 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000(factory default) PPR |
| Driver_Power supply | 24VDC |
| Driver_Max. Run Current | 1.7A/Phase |
| Driver_Max. Power consumption | 60W |
