| Shaft outer diameter | ?8mm |
|---|---|
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 40gf.cm(max. 0.00392N.m) |
| Resolution | 1000P/R |
| Output phase | A, B, Z |
| Control output | NPN open collector |
| Power supply | 12-24VDC @(=) ?5%(ripple P-P: max. 5%) |
| Connection type | Radial cable connector type |
| Protection structure | IP50 |
| Approval | @(CE) |
| Environment_Ambient temperature | -10 to 70?? storage: -25 to 85??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | ?6mm coupling standard, ?8mm coupling(sold separately) |
| Weight | Approx. 120g |

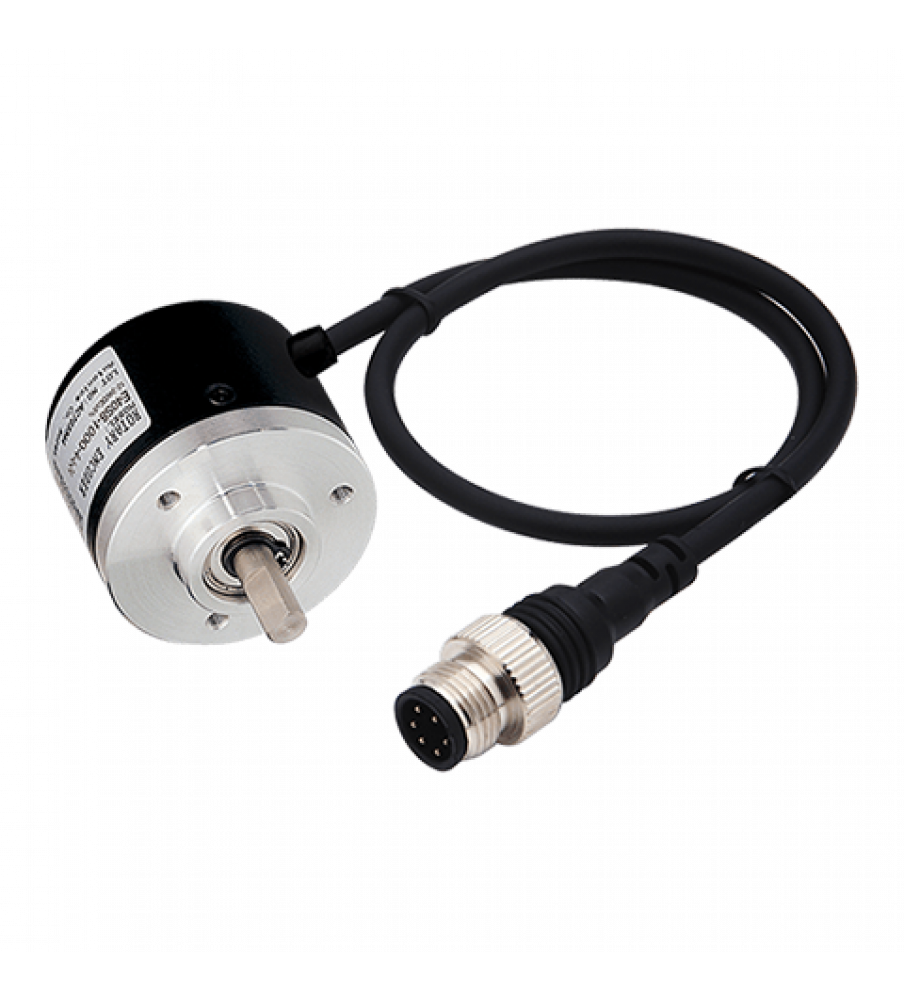

Tags: Encoder, Incremental, ?40mm, 8mm Shaft, 1000 PPR, A, B, Z, NPN open collector output, 12-24VDC, Cable outgoing connector
