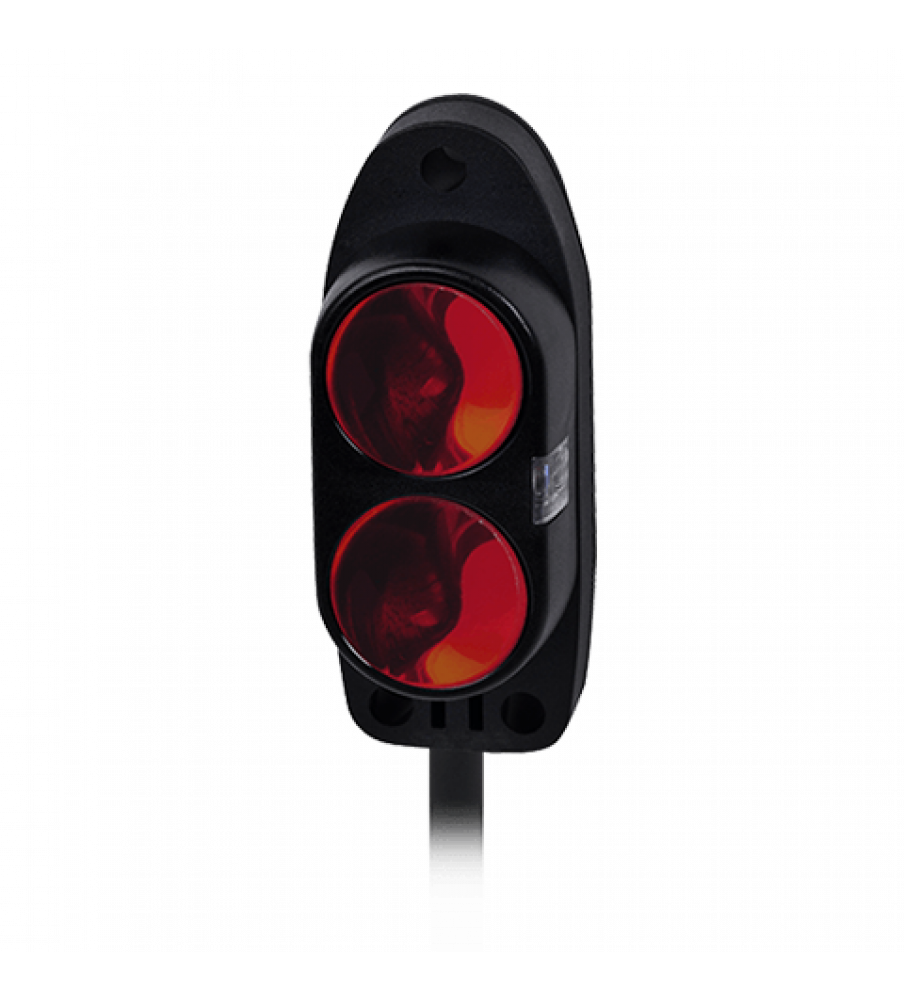

BA2M-DDTD-P
- Brand: Autonics
- Product Code:
- Availability: 0
Data sheet | Sensing type | Diffuse reflective type |
| Sensing distance | 2m |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED(850nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC @(=) ?10%(ripple P-P: max. 10%) |
| Current consumption | Max. 15mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Dark ON |
| Control output | PNP open collector |
| Connection type | Cable type(?3, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 55?? storage: -25 to 70??/td> |
| Protection structure | IP64 |
| Approval | @(CE) |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 20% at sensing distance |
| Material | Case: Acrylonitrile butadiene styrene, Sensing part: Polycarbonate, Indicator: Polycarbonate, Adjuster: IXEF |
| Accessories | Adjuster driver |
| Weight | Approx. 50g |
| Photoelectric Sensor |
| Sensing type |
Diffuse reflective |
| Sensing distance |
2 m |
| Response speed |
Max. 1ms |
| Light Source |
Infrared |
| Power supply |
12 - 24 VDC |
| Operation mode |
Light ON |
| Control output |
NPN |
| Connection |
Cable Type |
