Data sheet?
| Power supply | 100-240VAC~ 50/60Hz |
|---|---|
| Allowable voltage range | 90 to 110% of rated voltage |
| Power consumption | Max. 8VA |
| Sampling cycle | 50, 100, 250ms |
| Input type_RTD | DPt100?, Cu50?, Nickel120? (permissible line resistance max. 5?) |
| Input type_TC | K(CA), J(IC), L(IC), T(CC), R(PR), S(PR) |
| Input type_CT | 0.0-50.0A(primary current measurement range) ??T ratio=1/1000 |
| Display accuracy | RTD/Thermocouple: ??At room temperature (23???5??: (PV ?0.3% or ?1?? select the higher one) ?1-digit ??Out of room temperature ranges: (PV ?+H400.5% or ?2?? select the higher one) ?1-digit |
| Display accuracy_CT input | ?5% F.S. ?1-digit |
| Control output_Relay | 250VAC~ 3A 1a |
| Option output_Alarm | AL1, AL2: 250VAC~ 3A 1a |
| Option output_Trans. | DC4-20mA (load resistance: Max. 500? |
| Option output_Comm. | RS485 communication output (Modbus RTU/ASCII method) |
| Display method | 7-segment (red) 4-digit |
| Control method | ON/OFF control, P, PI, PD, PID control |
| Control output_Hysteresis | Control output: 1 to 100????(0.1 to 100.0???? Alarm output: 1 to 100????(0.1 to 50.0???? |
| Proportional band | 0.1 to 999.9??/td> |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | Relay output: 0.5 to 120.0 sec, SSR output: 0.5 to 120.0 sec |
| Dielectric strength | 3,000VAC~ 50/60Hz for 1 min (between the power part and the case) |
| Vibration | 0.75mm amplitude at frequency of 5 o 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
| Relay life cycle_Mechanical | OUT1/2, AL1/2: min. 5,000,000 operations |
| Relay life cycle_Electrical | OUT1/2, AL1/2: min. 100,000 (resistance load: 250VAC~ 5A) |
| Insulation resistance | 100M??or more (500VDC megger basis) |
| Insulation type | Double insulation or reinforced insulation (dielectric strength between measuring the power part and the case : 3kV) |
| Noise immunity | Square shaped noise by noise simulator (pulse width 1?? ?2kV R-phase, S-phase |
| Memory Protection | Approx. 10 years(non-volatile semiconductor memory type) |
| Environment_Ambient temperature | -10 to 50?? storage: -20 to 60??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Approval |  |
| Weight | Approx. 194.5g (approx. 123.5g) |

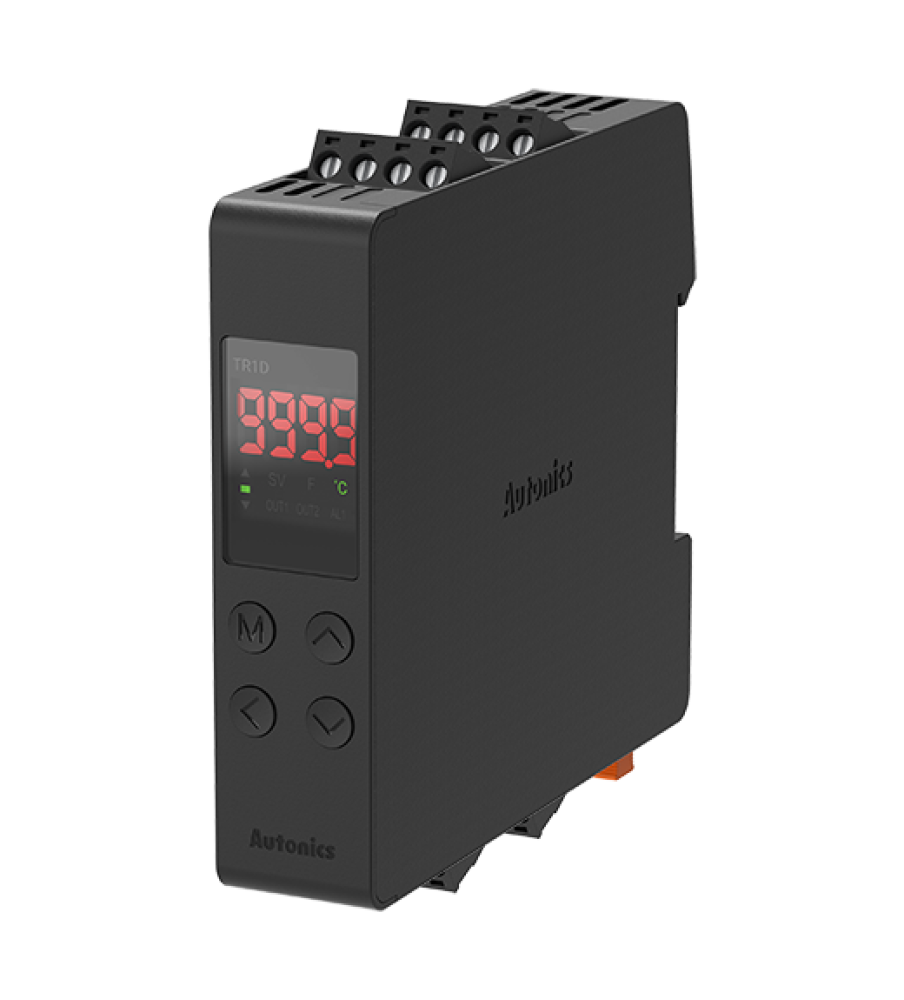

Tags: Single Display Modular Temperature Controller, 2 Relay Output, Alam Output, CT Input, RS485, 100-240VAC
