| Power supply | 100-240VAC~ 50/60Hz |
|---|---|
| Input type_RTD | JPt100?, DPt100?, DPt50?, Cu100?, Cu50?, Nikel120? (6 types) |
| Input type_TC | K, J, E, T, L, N, U, R, S, B, C, G, PLII (13 types) |
| Input type_Analog | ??oltage: 0-100mV, 0-5 V, 1-5 V, 0-10 V (4 types) ??urrent: 0-20mA, 4-20mA (2 types) |
| Control method | ON/OFF control, P, PI, PD, PID control |
| Sampling cycle | 50ms |
| Protection structure | IP65(front panel) |
| Size | DIN W96?H96mm |
| The number of control ouptut | 2 output type (Heating&Cooling type) |
| Control output | OUT1: Selectable Current output, SSR drive outputOUT2: Relay output |
| Option communication output | None |
| Option input/output | None |
| Approval | @(CE) |
| Environment_Ambient temperature | -10 to 50?? storage: -20 to 60??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 316g(approx. 220g) |

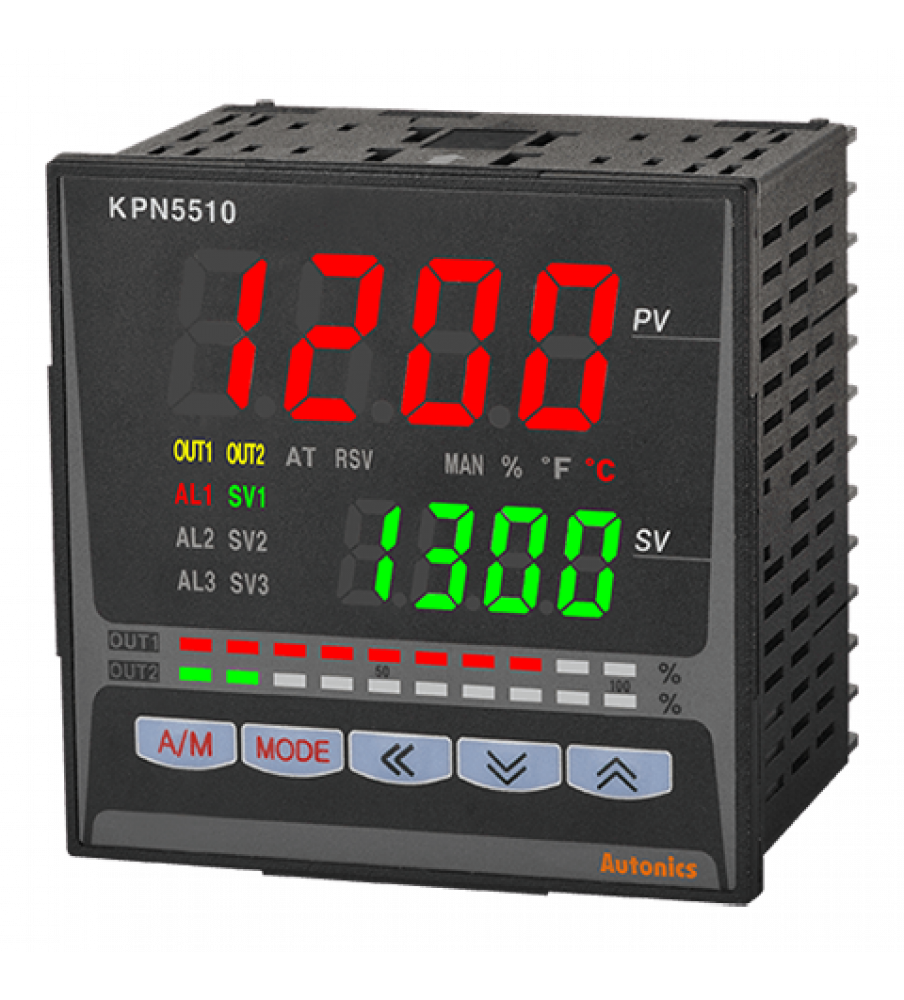

Tags: Bar Graph Temp Controller, DIN W96xH96mm, Heating or Cooling, Output1 (Current or SSR ), Output2 (Relay), 100 to 240 VAC
