| Number of connector pins | 20-pin |
|---|---|
| Number of terminal | 16 EA |
| Terminal type | Screwless |
| Terminal pitch | 5.0mm |
| Indicator | Power indicator: Red LED Operation indicator: Blue LED |
| Material | CASE: Polycarbonate, BASE: Polycarbonate |
| Approval | @(CE) @(CULUS_LISTED) |
| Weight | Approx. 86.3g(approx. 48.6g) |
| Rated voltage | 24VDC @(=) ?10% |
| Rated current | ??A |
| Insulation resistance | ??,000M??(at 500VDC megger) |
| Dielectric strength | 2,700 VAC~ 50/60 Hz for 1 minute |
| Environment_Ambient temperature | -15 to 55?? storage: -25 to 65??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP20(IEC standard) |

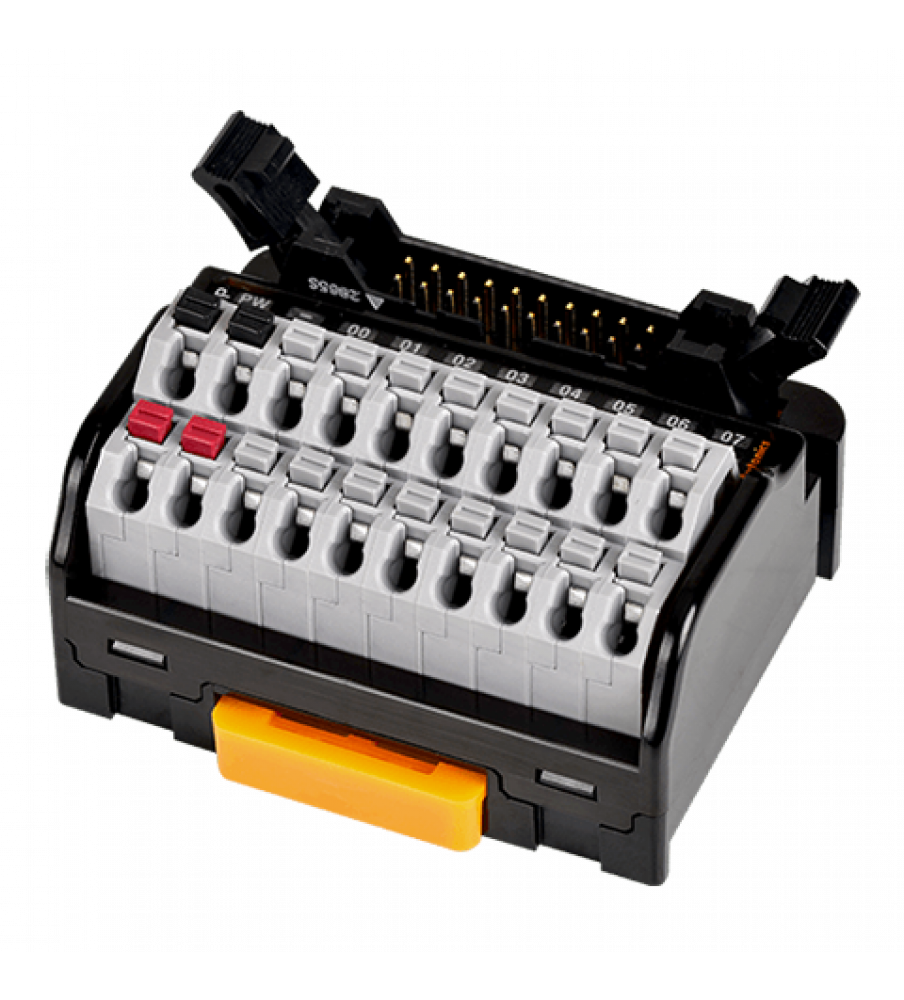

Tags: Screwless Interface Terminal Block, 20Pin, 16Terminal, PNP, 24VDC
