| Shaft outer diameter | ?8mm |
|---|---|
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 800gf.cm(max. 0.0784N.m) |
| Resolution | 360P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 5VDC @(=) ?5%(ripple P-P: max. 5%) |
| Connection type | Axial connector type |
| Protection structure | IP65 |
| Environment_Ambient temperature | -10 to 70?? storage: -25 to 85??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | ?8mm coupling, Bracket |
| Weight | Approx. 268g(Approx. 180g) |

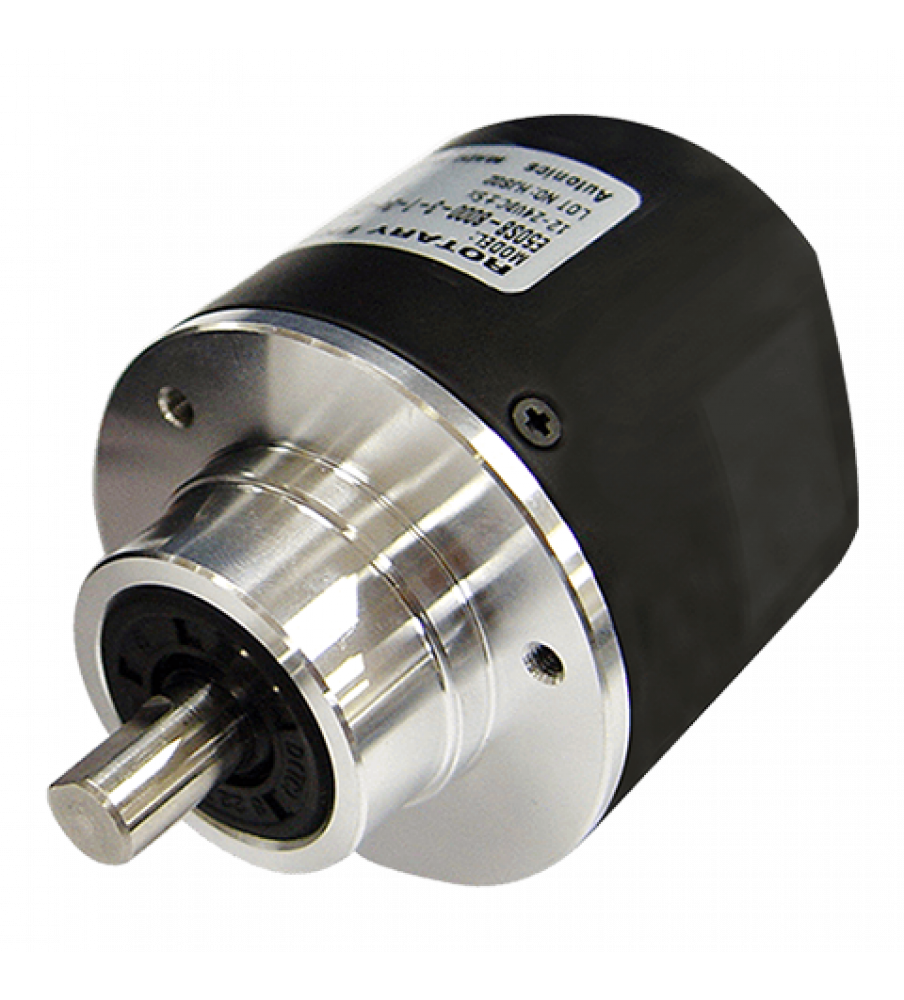

Tags: Encoder, Incremental, ?50mm, 8mm Shaft, 360 PPR, A, A/, B, B/, Z, Z/ Line driver output, 5VDC, Rear side outgoing Connector type
