| LED block_Power supply | 12-24VAC~ 50/60Hz, 12-24VDC @(=) |
|---|---|
| LED block_Current consumption | Max. 20mA |
| Protection structure | IP52 |
| Approval | @(CE) @(CULUS) |
| Weight_Mounting hole_??0 | Approx. 22g |
| Weight_Housing | Approx. 7g |
| Weight_LED block_AC/DC voltage type | Approx. 11g |
| Letter marking | Marking(Lamp) |

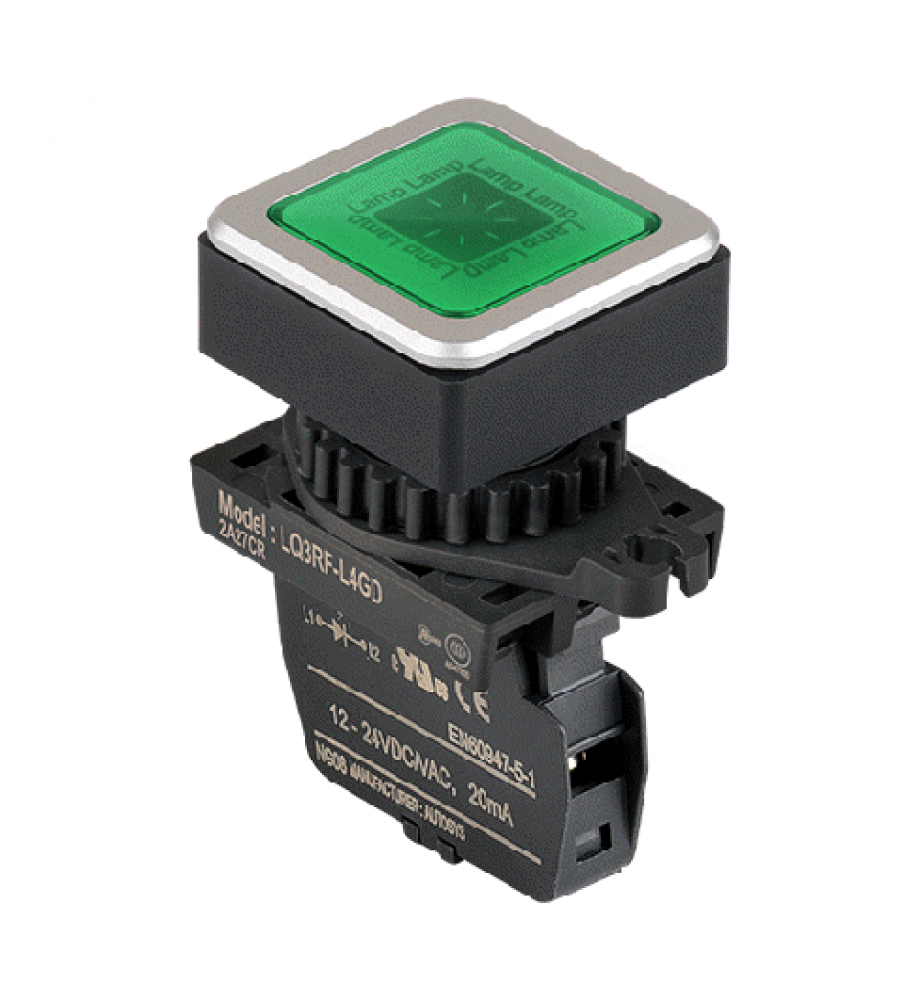

| Head type | Flat square(flush) |
| Color | Green |
| LED block type | Singular type |
| Environment_Ambient temperature | -15 to 55?? storage: -25 to 65??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
Tags: Pilot Lamp, Square type, Flush, Illuminated, ?30, Green, LED 12-24VDC/AC
