| Shaft inner diameter | ?30mm |
|---|---|
| Max. response frequency | 200kHz |
| Max. allowable revolution | 3600rpm |
| Starting torque | Max. 200gf.cm(max. 0.0196N.m) |
| Resolution | 3200P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 5VDC @(=) ?5%(ripple P-P: max. 5%) |
| Connection type | Radial cable connector type |
| Protection structure | IP50 |
| Approval | @(CE) |
| Environment_Ambient temperature | -10 to 70?? storage: -25 to 85??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Spring bracket |
| Weight | Approx. 560g |

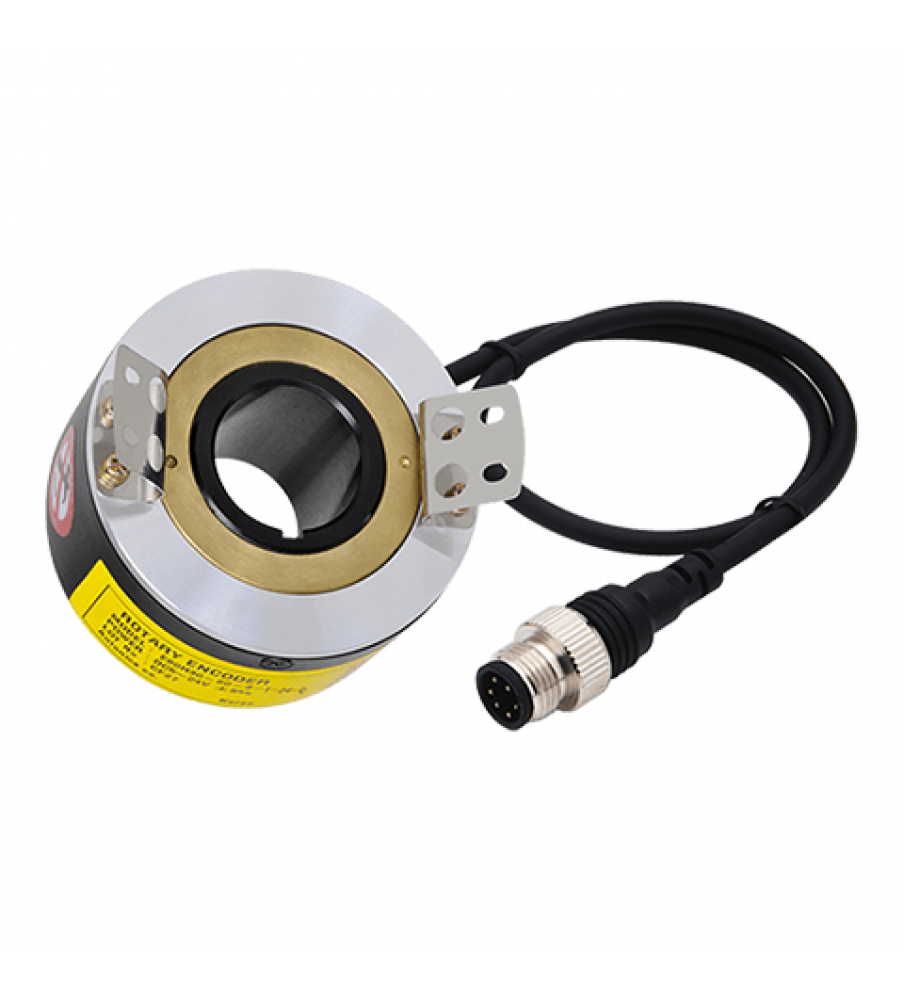

Tags: Encoder, Incremental, ?80mm, 30mm Hollow Shaft, 3200 PPR, A, B, Z, Totem pole output, Cable outgoing connector type, 5 VDC
