| Driver_Operation Method | Bipolar constant current Drive |
|---|---|
| Driver_Applied Motor | Frame size 60mm 2-phase closed loop stepper motor |
| Driver_Resolution | 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR (selectable by SW2) |
| Driver_Power supply | 24VDC @(=) |
| Driver_Max. Run Current | 3.5A/Phase |
| Driver_Max. Power consumption | 240W |
| Driver_Output | In-Position, Alarm Out, Encoder signal (A, @(A^), B, @(B^), Z, @(Z^)) |
| Driver_Protection structure | IP20 |
| Driver_Approval | @(CE) |
| Motor_Basic Step Angle [FULL/HALF] | 1.8?/0.9? |
| Motor_Max. Holding Torque | 11.22kgf.cm |
| Motor_Rotor Moment Of Inertia | 240g?cm? |
| Motor_Winding Resistance | 1? |
| Motor_Rated Current | 3.5A/Phase |
| Motor_Motor length | 81.9mm |
| Motor_Shaft Type | Single shaft |
| Motor_Operation Method | Bipolar |
| Motor_Resolution | 10,000PPR(2,500PPR?4-multiply) |
| Motor_Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Motor_Max. response frequency | 300kHz |
| Motor_Protection structure | IP30 |
| Motor phase | 2-Phase |
| Driver_Environment_Ambient temperature | 0 to 50?? storage: -10 to 60??/td> |
| Driver_Environment_Ambient humidity | 35 to 85%RH, storage: 10 to 90%RH |
| Driver_Weight | Approx. 400g(approx. 290g) |
| Motor_Number Of Axes | 1-axis |
| Motor_Environment_Ambient temperature | 0 to 50?? storage: -20 to 70??/td> |
| Motor_Environment_Ambient humidity | 20 to 85%RH, storage: 15 to 90%RH |
| Motor_Weight | Approx. 0.89kg(approx. 0.75kg) |

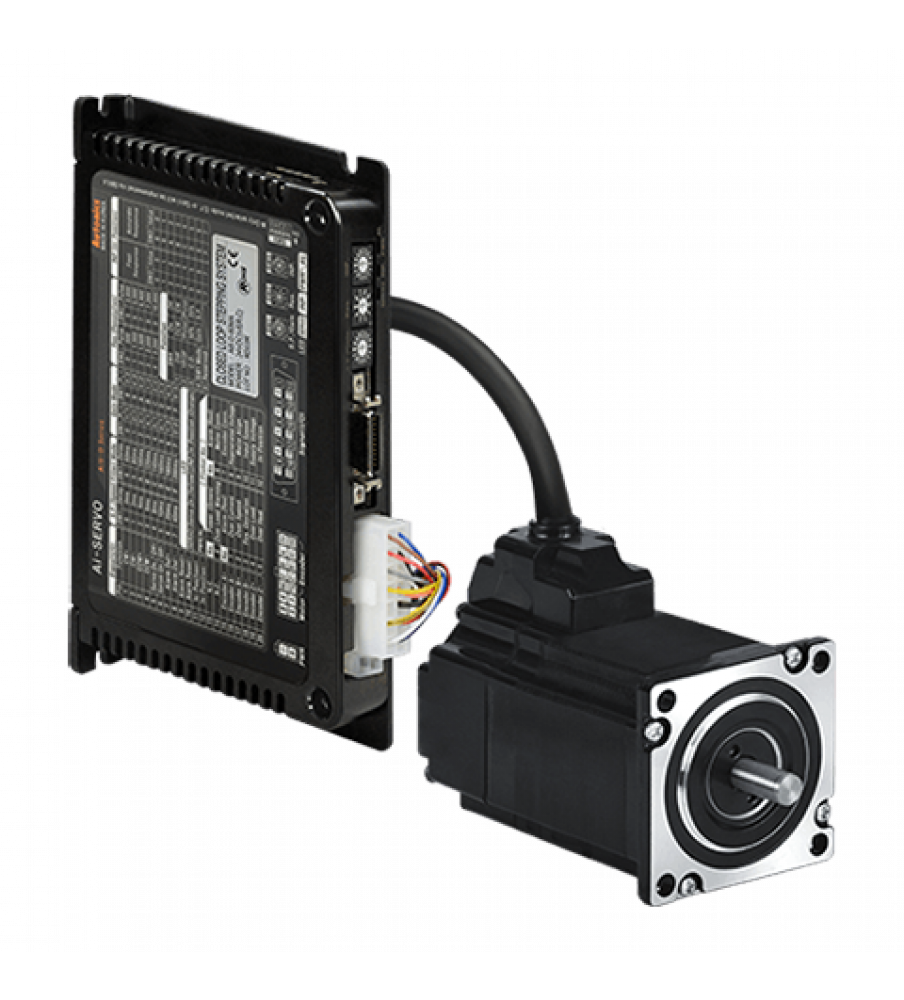

Tags: 2-Phase Closed-Loop Stepper Driver & Motor, AiS-D-60SA Driver(3.5A/Phase) + Ai-M-60SA Motor(11.22Kgf.cm/1.1N.m), 24VDC
