Data sheet?
| Max. holding torque | 11.22kgf.cm |
|---|---|
| Rotor Moment Of Inertia | 240g?cm? |
| Rated current | 2A/Phase |
| Winding Resistance | 1.5? |
| Inductance | 3.9 mH/Phase |
| Weight | Approx. 1.53 kg (approx. 1.35 kg) |
| Basic Step Angle [FULL/HALF] | 1.8?/0.9? |
| Motor phase | 2-Phase |
| Operation method | Bipolar constant current Drive |
| Resolution | 10,000PPR(2,500PPR?4-multiply) |
| Output phase | A,  , B,  , Z,  |
| Max. response frequency | 300kHz |
| Protection structure | IP30 |
| Approval |  |
| Environment_Ambient temperature | 0 to 40?? storage: -20 to 70??/td> |
| Environment_Ambient humidity | 20 to 85%RH, storage: 15 to 90%RH |

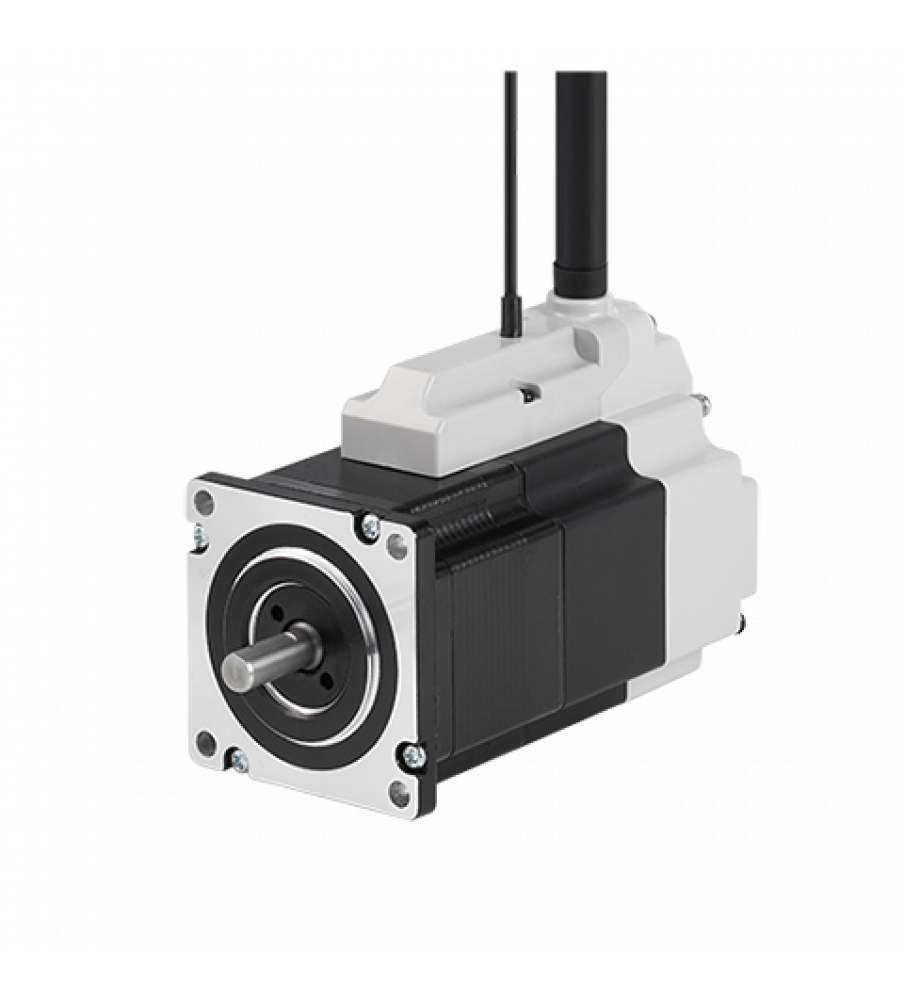

Tags: 2-Phase Closed-Loop Stepper Motor, 60mm Square, Single Shaft, 2.0A/Phase, 11.22Kgf.cm / 1.1N.m, Built-in brake
