| Driver_Applied Motor | Frame size 86mm 2-phase closed loop stepper motor |
|---|---|
| Driver_Resolution | 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000(SW2) |
| Driver_Power supply | 200-240VAC~ |
| Driver_Max. Run Current | 2A/Phase |
| Driver_Max. Power consumption | 300W |
| Driver_Protection structure | IP20(IEC standard) |
| Driver_Approval | @(CE) |
| Motor_Basic Step Angle [FULL/HALF] | 1.8?/0.9? |
| Motor_Applied Driver | Frame size 60mm AC type 2-phase closed-loop stepper motor driver |
| Motor_Max. Holding Torque | 40.8kgf.cm |
| Motor_Rotor Moment Of Inertia | 1,800g?cm? |
| Motor_Winding Resistance | 1.9? |
| Motor_Rated Current | 2A/Phase |
| Motor_Motor length | 109.4mm |
| Motor_Shaft Type | Single shaft |
| Motor_Operation Method | Bipolar constant current Drive |
| Motor_Resolution | 10,000PPR(2,500PPR?4-multiply) |
| Motor_Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Motor_Max. response frequency | 300kHz |
| Motor_Protection structure | IP30 |
| Motor_Approval | @(CE) |
| Motor phase | 2-Phase |
| Driver_Environment_Ambient temperature | 0 to 50?? storage: -10 to 60??/td> |
| Driver_Environment_Ambient humidity | 35 to 85%RH, storage: 10 to 90%RH |
| Driver_Weight | Approx. 1,080g(approx. 800g) |
| Motor_Environment_Ambient temperature | 0 to 50?? storage: -20 to 70??/td> |
| Motor_Environment_Ambient humidity | 20 to 85%RH, storage: 15 to 90%RH |
| Motor_Weight | Approx. 2.60kg(approx. 2.30kg) |

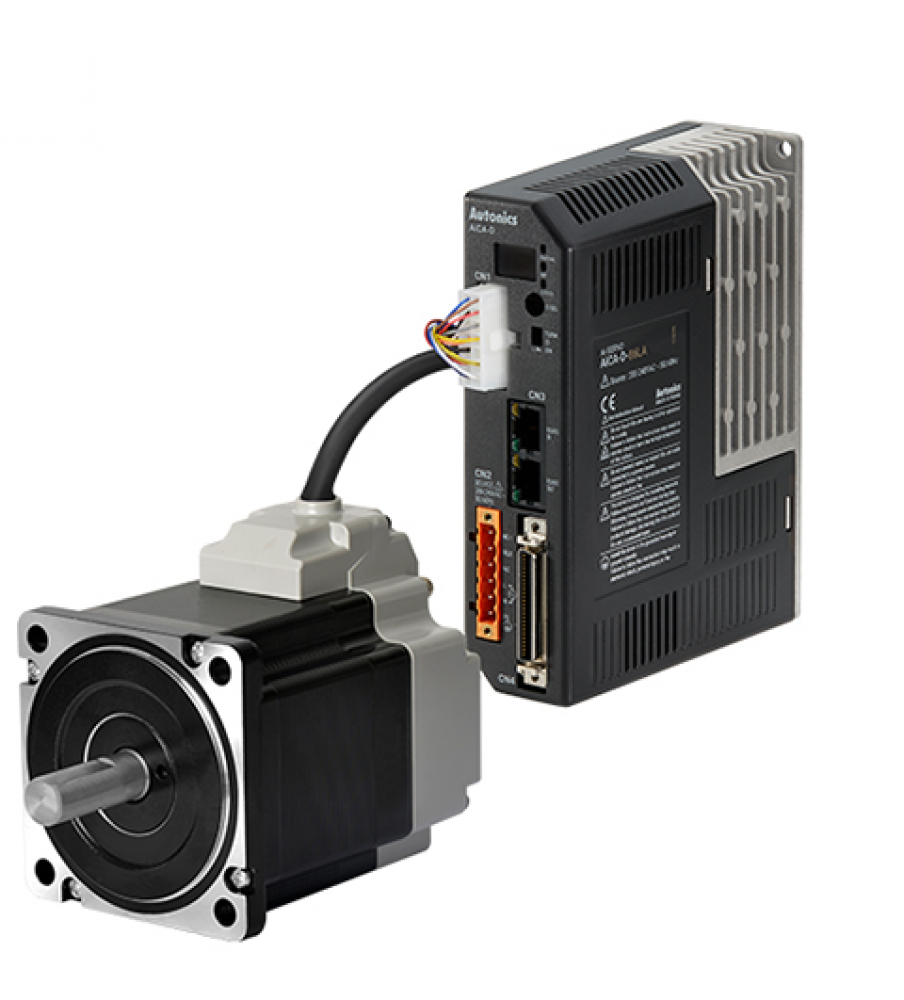

Tags: 2-Phase Closed-Loop Stepper Motor (AiA-M-86LA)+Controller-Intergrated Driver(AiCA-D-86LA), Torque 40.8kgf.cm(4.0N.m), RS485, 200-240VAC
