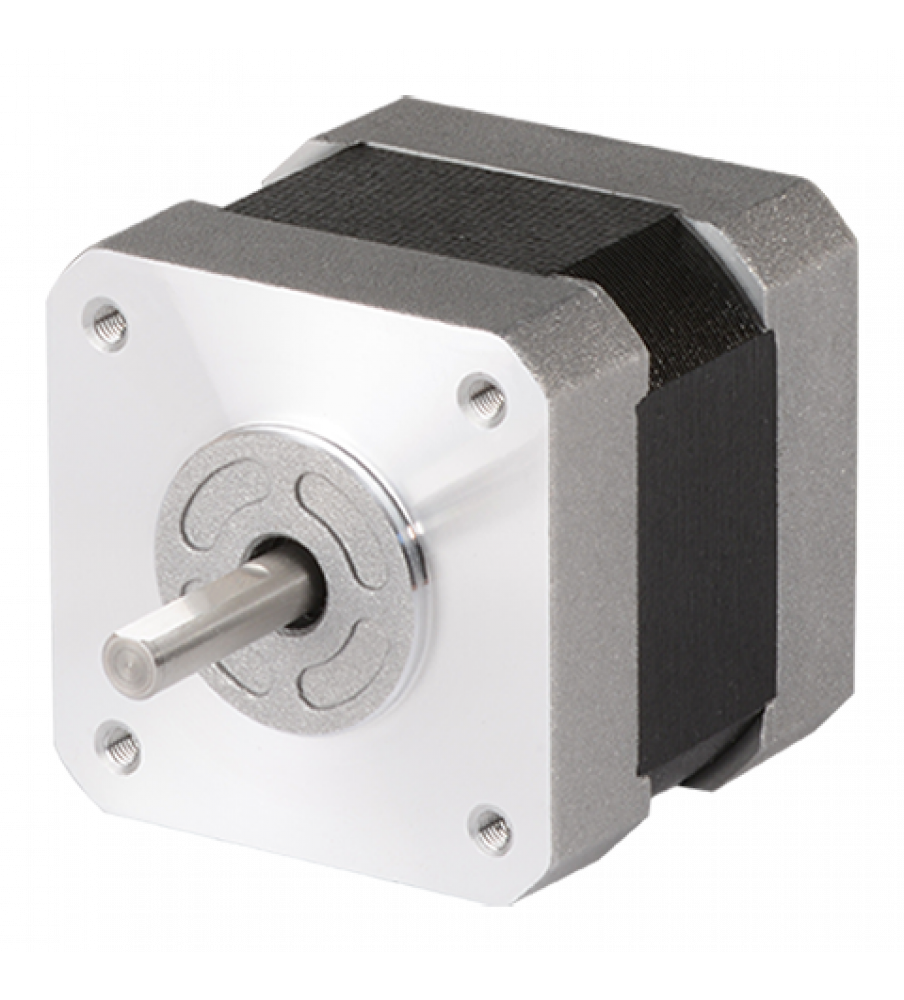

A1K-M543W
- Brand: Autonics
- Product Code:
- Availability: 1
Data sheet | Basic Step Angle [FULL/HALF] | 0.72?/0.36? |
| Max. holding torque | 1.3kgf.cm |
| Rotor Moment Of Inertia | 35g?cm? |
| Winding Resistance | 1.7? |
| Rated current | 1.4A/Phase |
| Motor length | 33mm |
| Shaft type | Dual shaft |
| Wire connection | Pentagon |
| Protection structure | IP30 |
| Approval | @(CE) |
| ElectroMagnetic brake_Rated excitation voltage | 24VDC @(=)?10%(no-polarity) |
| ElectroMagnetic brake_Rated excitation current | 0.2A |
| ElectroMagnetic brake_Static friction torque | 1.8kgf.cm |
| ElectroMagnetic brake_Rotation part inertia moment | 3?10@(^-7)kgf.cm? |
| ElectroMagnetic brake_B type brake | Power on: brake is released, power off: brake is operating |
| ElectroMagnetic brake_Operating time | Max. 25ms |
| ElectroMagnetic brake_Releasing time | Max. 15ms |
| Weight | Approx. 0.34kg(approx. 0.25kg) |
| Stepper Motor Driver |
| Basic Step Angle |
0.72º/0.36º |
| Max. holding torque |
1.3kgf.cm |
| Rotor Moment Of Inertia |
35g·cm² |
| Winding Resistance |
1.7Ω
|
| Rated Current |
0.75A/Phase |
| protection struture |
IP30 |
Tags:
Motor,
5 Phase Stepping,
42mm Square,
Duel Shaft,
1.4 amps,
1.3 Kg-Cm Torque,
5-Wire
