Data sheet?
| Max. response frequency | 10kHz |
|---|---|
| Max. allowable revolution | 200rpm(Normal), 600rpm(Peak) |
| Starting torque | Max. 1kgf.cm(max. 0.098N.m) |
| Resolution | 100P/R |
| Output phase | A,  , B,  |
| Click stopper position | Normal "L" |
| Control output | Line Driver |
| Power supply | 5VDC  ?5%(ripple P-P: max. 5%) |
| Connection type | D-SUB connector type |
| Protection structure | IP67 |
| Environment_Ambient temperature | -10 to 70?? storage: -25 to 85??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Weight | Approx. 730g |
??he power of Line driver is only for 5VDC.
??ake sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm) = Max. response frequency/Resolution ? 60sec]
??t is protection for the rear case and the wiring part.
??he weight includes packaging. The weight in parenthesis is for unit only.
??nvironment resistance is rated at no freezing or condensation.

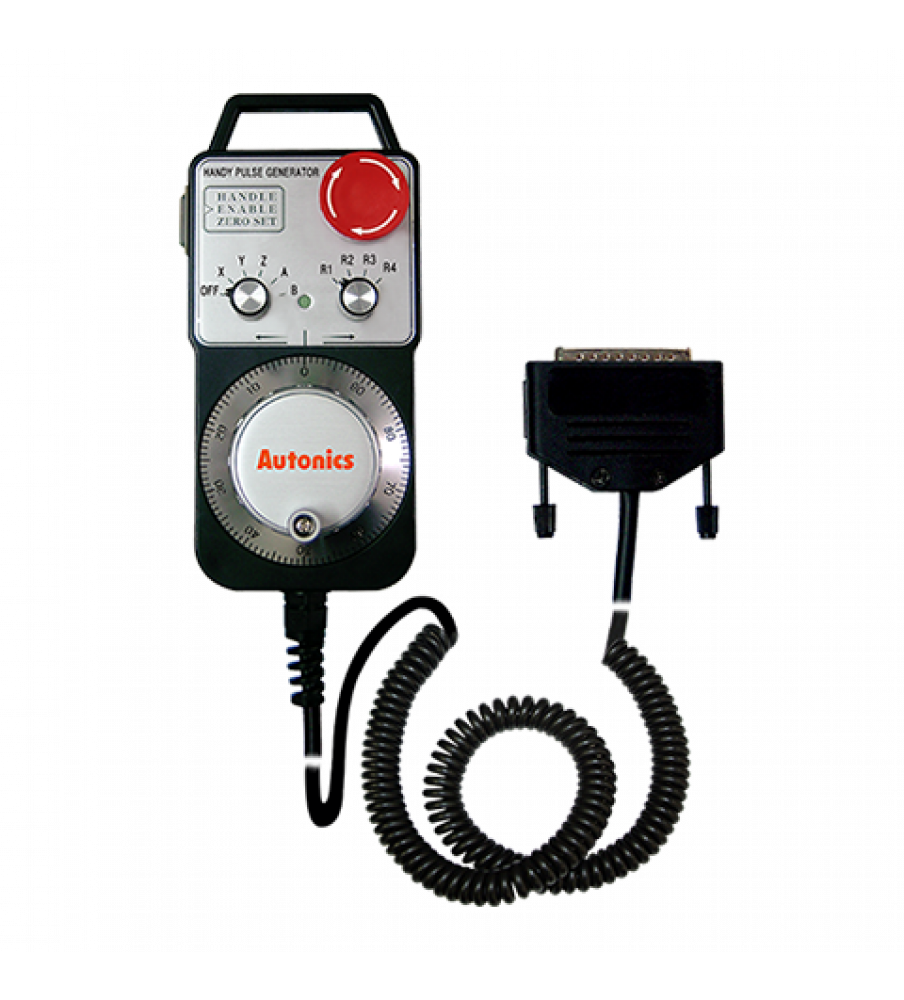

| Rotary Encoder | |
| Type | Incremental |
| Shaft type | Portabel handle |
| Resolution | 100 |
| Output phase | A,B |
| Control output | Line Driver |
| Power supply | 5VDC |
| Connector type | Cable |
