| Shaft outer diameter | ?10mm |
|---|---|
| Max. response frequency | 20kHz |
| Max. allowable revolution | 3600rpm |
| Starting torque | Max. 500gf.cm(max. 0.049N.m) |
| Resolution | 360P/R |
| Output code | BCD Code |
| Output specification | Positive logic(PNP) |
| Rotating direction | CCW |
| Control output | PNP open collector |
| Power supply | 5VDC @(=) |
| Connection type | Axial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70?? storage: -25 to 85??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Fixing bracket, Coupling |
| Weight | Approx. 478g(approx. 400g) |

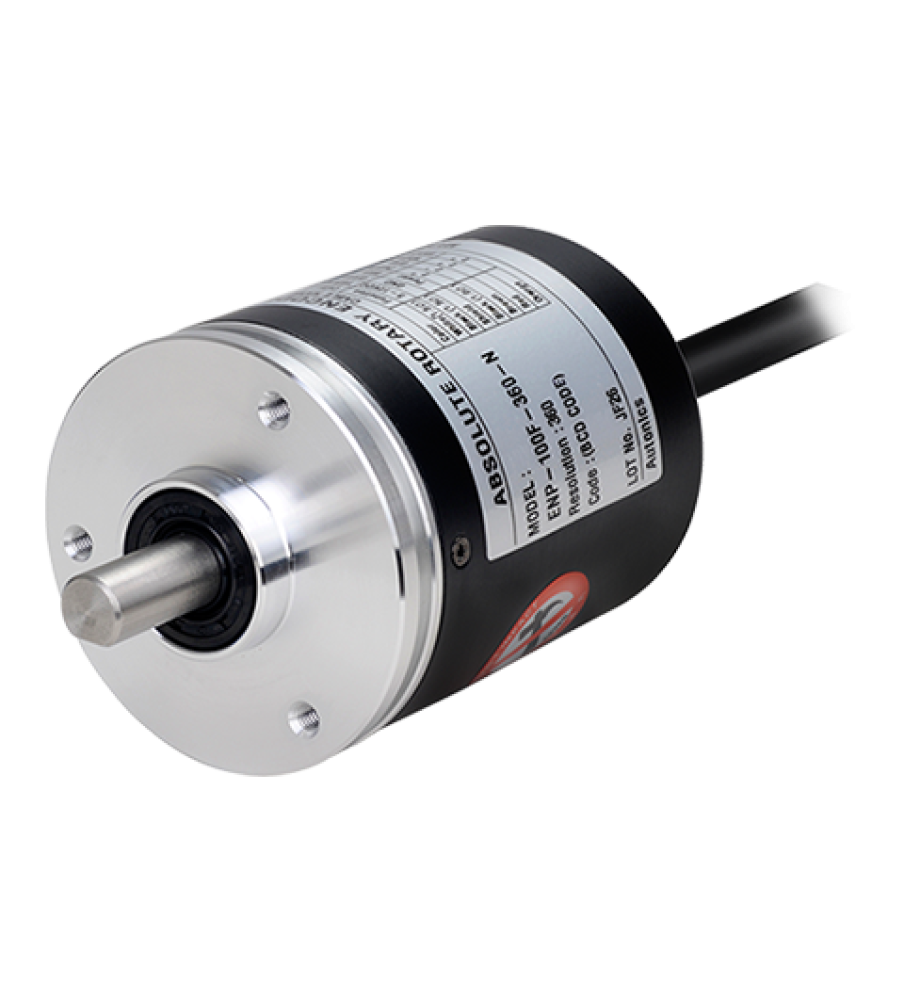

| Rotary Encoder | |
| Type | Absolute (Single-turn) |
| Shaft type | 60 mm Shaft |
| Resolution | 360 |
| Output phase | BCD |
| Control output | PNP |
| Power supply | 5-12 VDC andaring;andplusmn;5% |
| Connector type | Cable |
