| Mechanical characteristics_Operation angle | Left 45?, Right 45? |
|---|---|
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
| Protection structure | IP52 |
| Approval | @(KC) @(CE) @(CULUS)(LED blocks are except @(KC) certifications) |
| Weight_Mounting hole_?30 | Approx. 21g |
| Weight_Housing | Approx. 7g |
| Weight_Contact block_Singular type A/B contact | Approx. 11g |
| Operation type | Short lever 3-position, spring return two-way |
| Color | White |
| Contact block | B contact: 2 |
| Contact block type | Singular type |
| Environment_Ambient temperature | -15 to 55?? storage: -25 to 65??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |

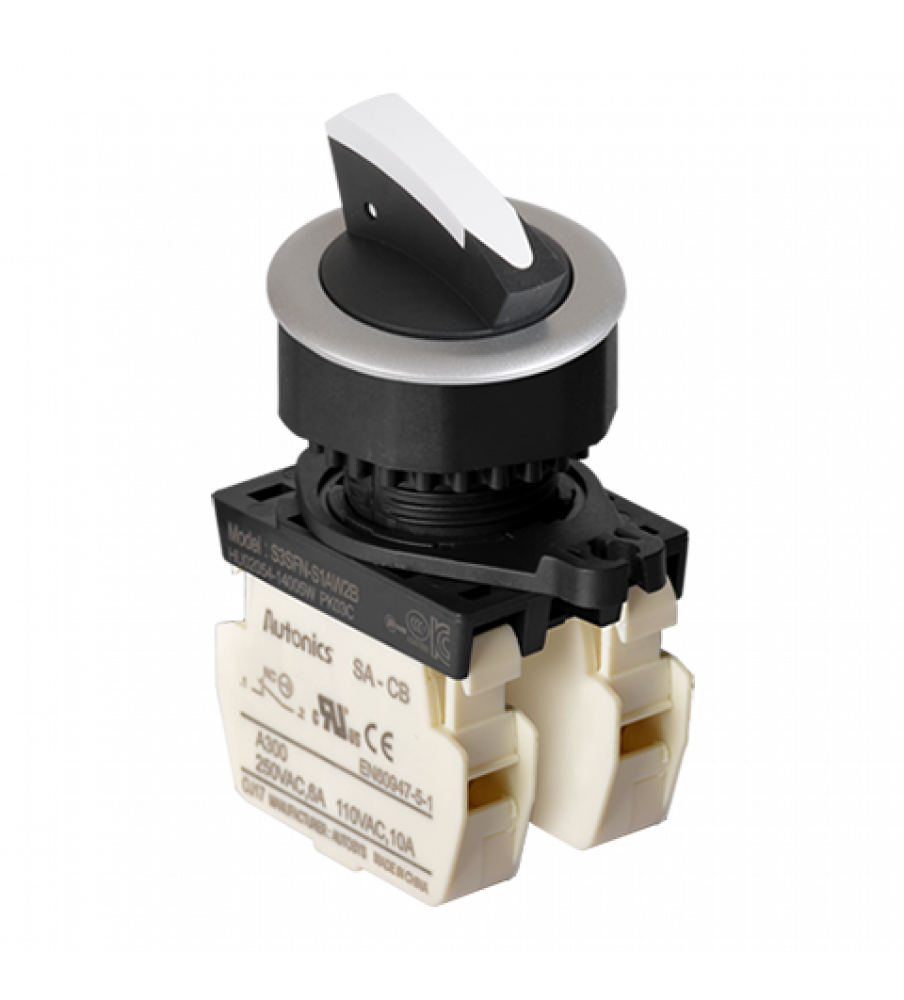

Tags: Selector switch, Diameter 30mm, Flush, Shark-head lever, Non-Illuminated, 3-position, Spring return two-way, Left 45?, Right 45?, White, 2 Normal Close, 250VAC 6A, 110VAC 10A, Singular Type, S3SFN-S5KW /w 2 PCS of SA-CB
