| Mechanical characteristics_Operation angle | Left 45? , Right 45? |
|---|---|
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
| Protection structure | IP52 |
| Approval | @(KC) @(CE) @(CULUS)(LED blocks are except @(KC) certifications) |
| Weight_Mounting hole_?22/25 | Approx. 16g |
| Weight_Housing | Approx. 7g |
| Weight_Contact block_Singular type A/B contact | Approx. 11g |
| Operation type | Short lever 2-position, maintained |
| Color | White |
| Contact block | A contact: 1, B contact: 1 |
| Contact block type | Singular type |
| Environment_Ambient temperature | -15 to 55?? storage: -25 to 65??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |

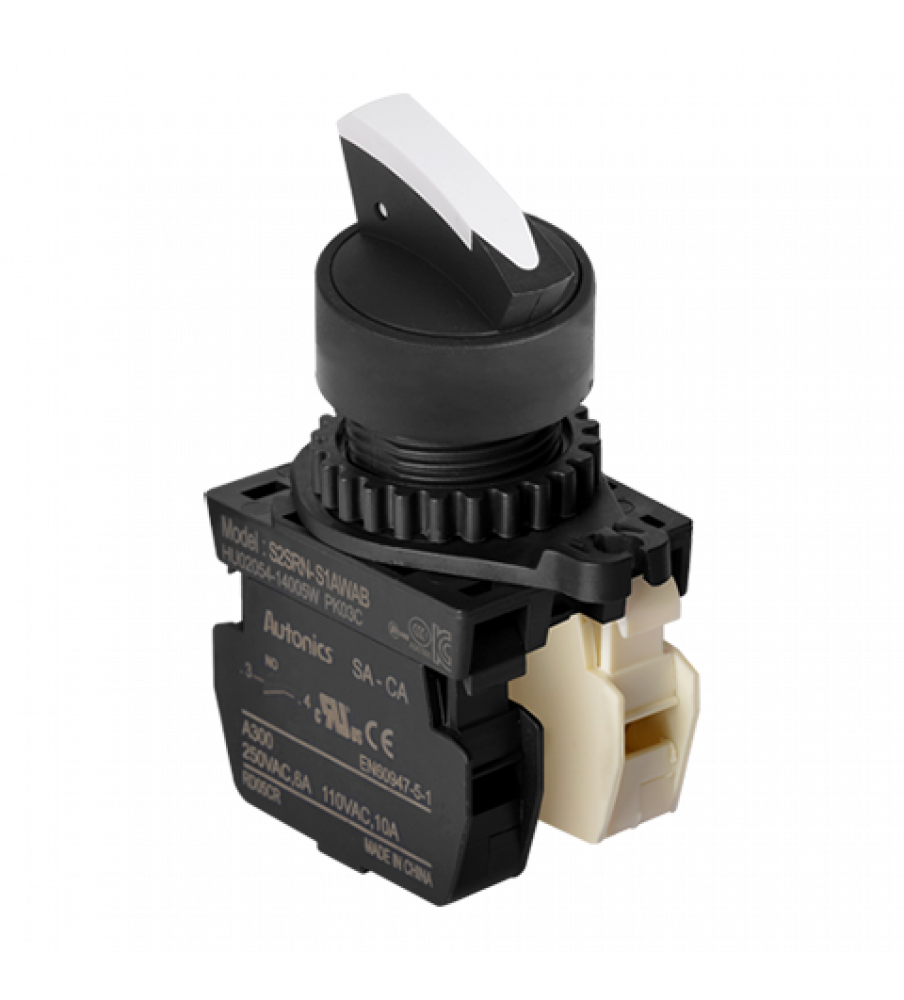

Tags: Shark Short Lever Selector Switches, Non-Flush, ?22/25, 2 Positions maintained Left 45? Right 45?, White, 1 Normal Open 1 Normal Close, 110VAC/10A, 220VAC/5A
