| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
|---|---|
| LED block_Power supply | 12-24VAC~ 50/60Hz, 12-24VDC @(=) |
| LED block_Current consumption | Max. 20mA |
| Protection structure | IP52 |
| Approval | @(KC) @(CE) @(CULUS)(LED blocks are except @(KC) certifications) |
| Weight_Mounting hole_?22/25 | Approx. 15.5g |
| Weight_Housing | Approx. 7g |
| Weight_Contact block_Modular type A/B contact | Approx. 10g |
| Weight_LED block_AC/DC voltage type | Approx. 11g |
| Illuminated | Illuminated |
| Letter marking | Marking(Push) |
| Button type | Extended(illuminated) |
| Color | Blue |
| Contact block | A contact: 1 |
| Contact block type | Modular type |
| Environment_Ambient temperature | -15 to 55?? storage: -25 to 65??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |

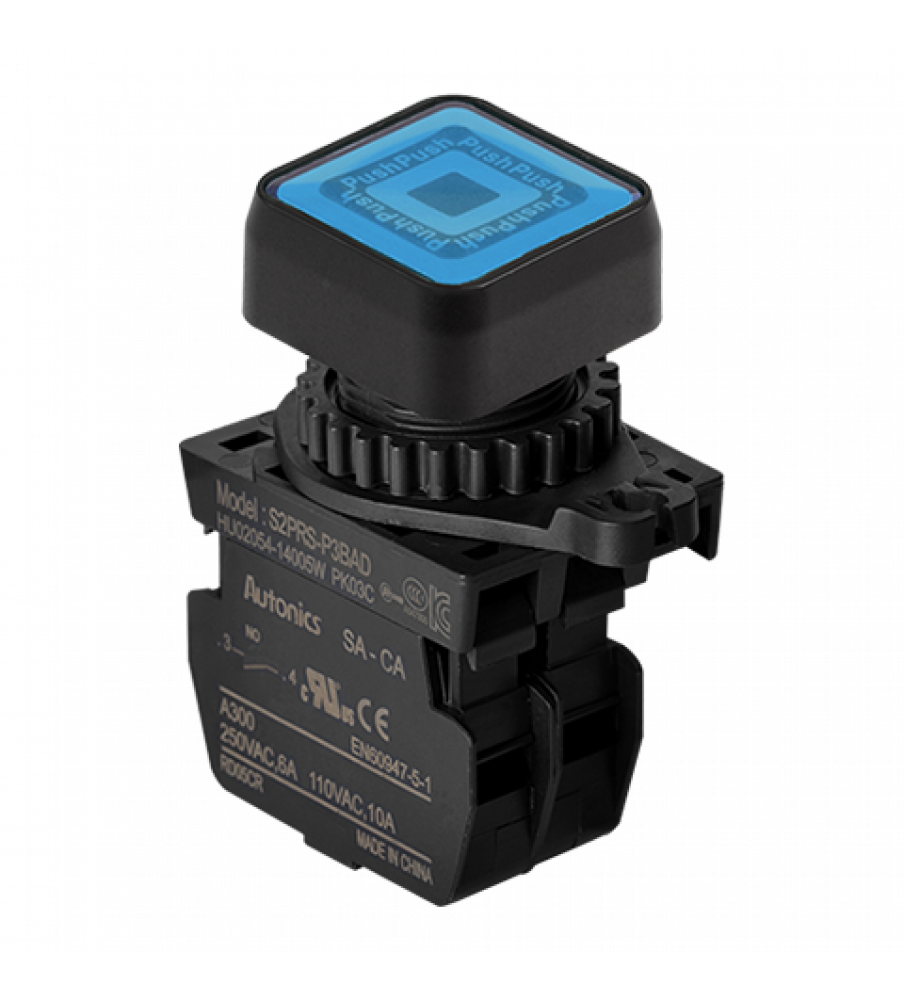

Tags: SquareType Push Button (Non-Flush, Illuminated), ?22/25, Blue, Normal Open, Multi Stack, LED 12-24 VDC/VAC 50/60 Hz, S2PRS-P3B /w SA-CAM, SA-LDBM
