| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
|---|---|
| Protection structure | IP52(IP65 protection structure with waterproof cap for ?22/25 round push button switches) |
| Approval | @(KC) @(CE) @(CULUS)(LED blocks are except @(KC) certifications) |
| Weight_Mounting hole_?22/25 | Approx. 14.5g |
| Weight_Housing | Approx. 7g |
| Weight_Contact block_Singular type A/B contact | Approx. 11g |
| Illuminated | Non-illuminated |
| Letter marking | None(no printing) |
| Button type | Extended button |
| Color | Blue |
| Contact block | A contact: 1 |
| Contact block type | Singular type |
| Environment_Ambient temperature | -15 to 55?? storage: -25 to 65??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |

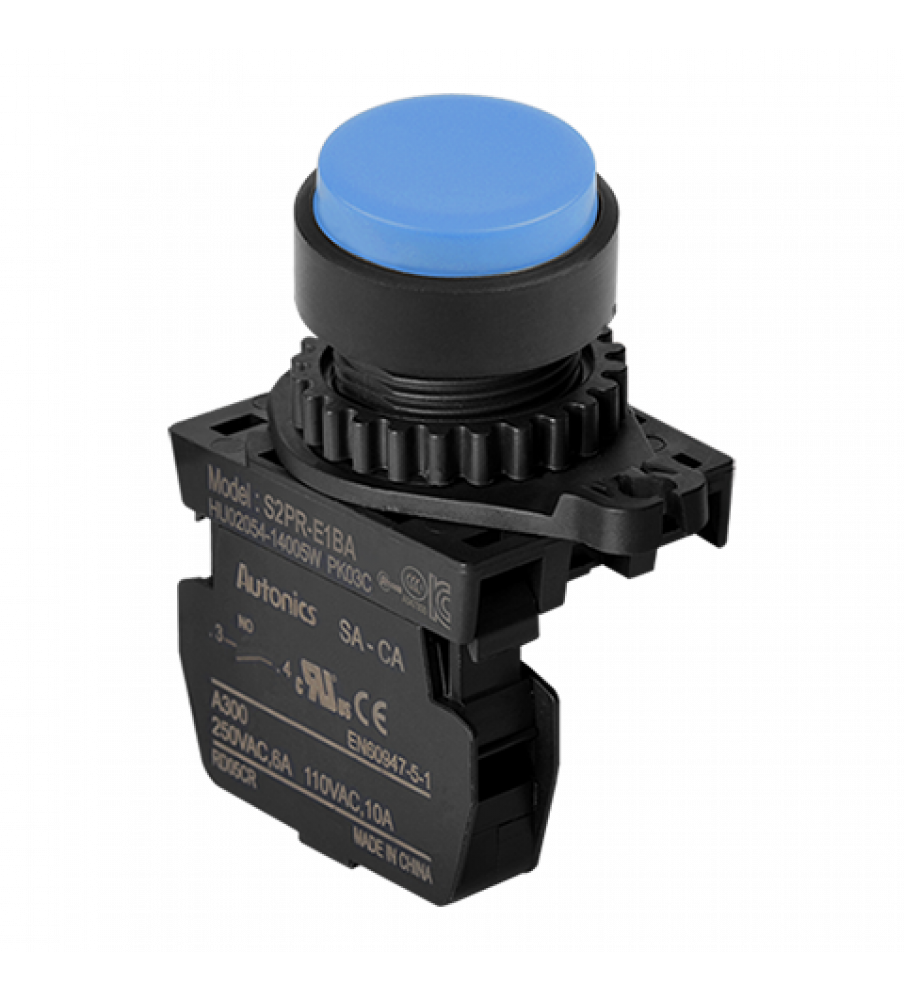

Tags: Non-Illuminated Push Button (Non-Flush), ?22/25, Raised Button, Blue, Normal Open, Singlular Type, 110VAC/10A, 220VAC/5A
