| Max. response frequency | 10kHz |
|---|---|
| Max. allowable revolution | 200rpm(Normal), 600rpm(Peak) |
| Starting torque | Max. 1kgf.cm(max. 0.098N.m) |
| Resolution | 100P/R |
| Output phase | A, B |
| Click stopper position | Normal "L" |
| Control output | Totem pole |
| Power supply | 5VDC @(=) ?5%(ripple P-P: max. 5%) |
| Connection type | D-SUB connector type |
| Protection structure | IP67 |
| Environment_Ambient temperature | -10 to 70?? storage: -25 to 85??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Weight | Approx. 730g |

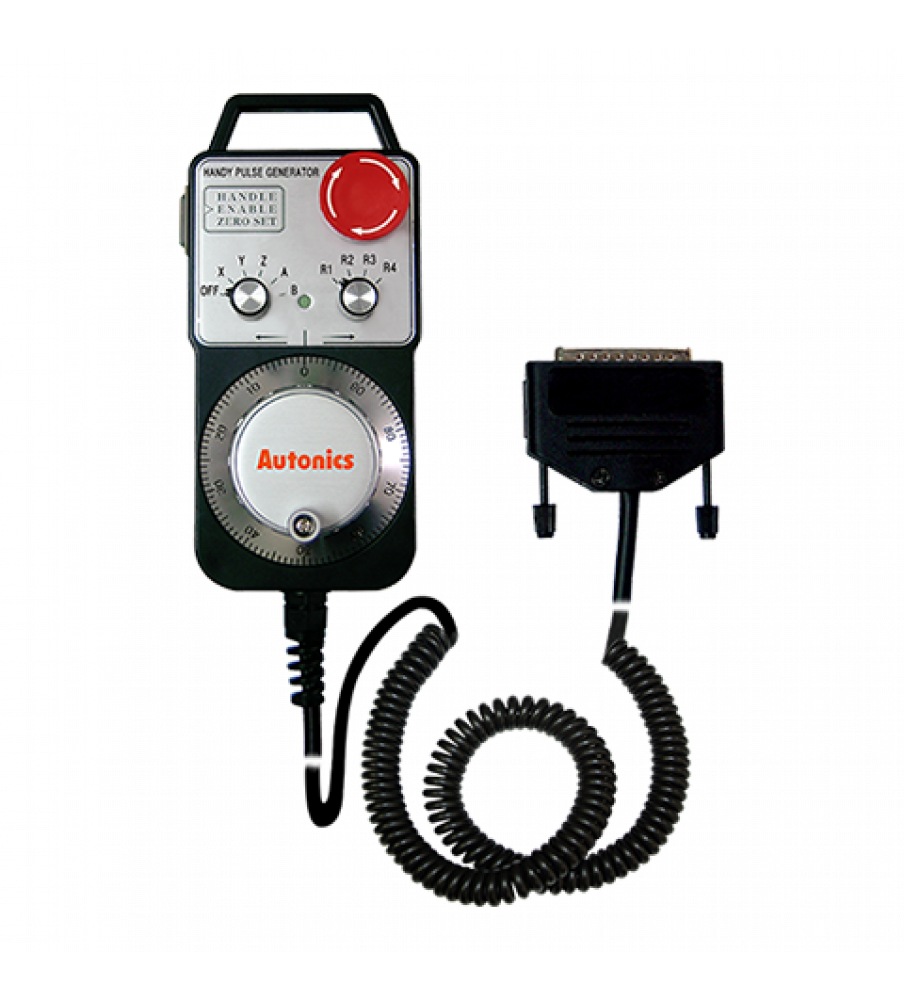

Tags: Pulse Generator, Hand Held, 100 PPR, 3 Feed Rates 5 Axis, Clickstopper Position Normal Low, Totemple Output, 5VDC
