| Max. response frequency | 180kHz |
|---|---|
| Max. allowable revolution | 5000rpm |
| Output phase | A, B |
| Wheel diameter | 228.6mm(0.25yd) |
| Gear ratio | 4:1 |
| Number of pulses | 1 |
| Min. measurement unit | 1yd |
| Control output | Totem pole |
| Power supply | 12-24VDC @(=) ?5%(ripple P-P: max. 5%) |
| Connection type | Axial cable connector type |
| Protection structure | IP50 |
| Approval | @(CE) |
| Environment_Ambient temperature | -10 to 70?? storage: -25 to 85??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Weight | Approx. 494g |

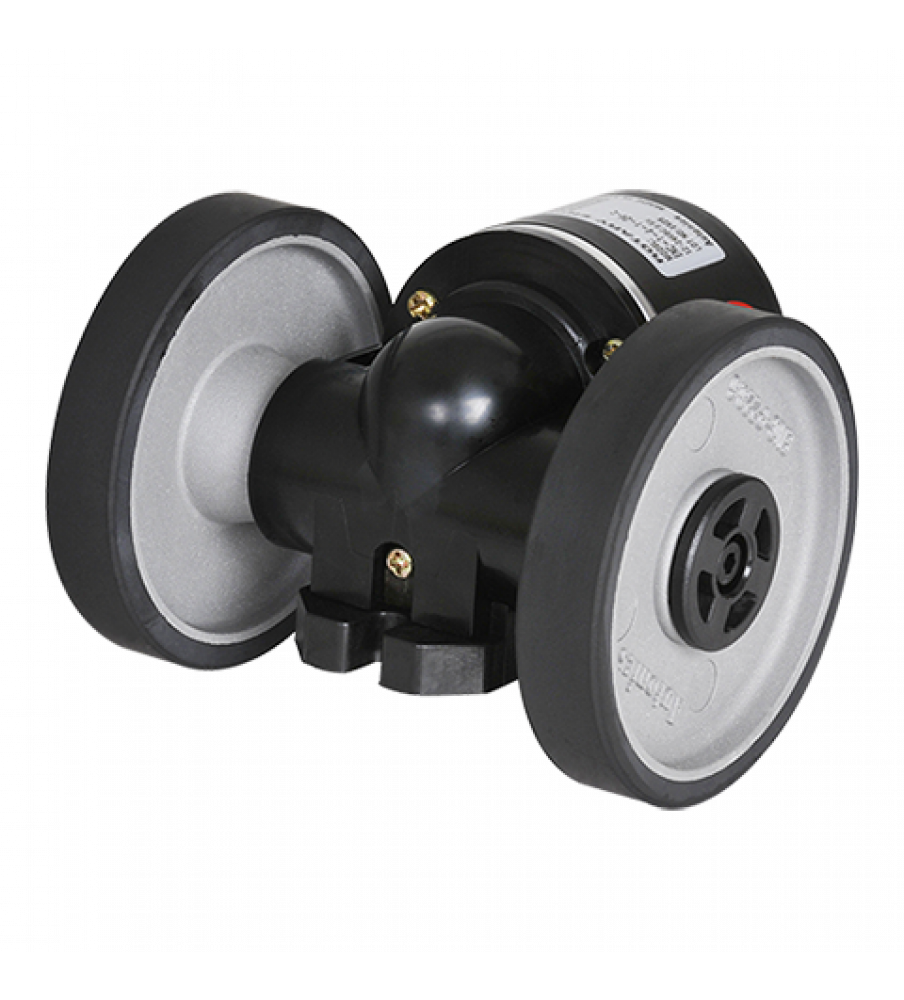

Tags: Encoder, Incremental, Wheel Type, 1 Pulse Per 1 Yard, Totem pole output, 12-24 VDC, Cable outgoing connector
