| Shaft inner diameter | ?20mm |
|---|---|
| Max. response frequency | 300kHz |
| Max. allowable revolution | 6000rpm |
| Starting torque | Max. 150gf.cm(max. 0.0147N.m) |
| Resolution | 100P/R |
| Output phase | A, B, Z |
| Control output | NPN open collector |
| Power supply | 12-24VDC @(=) ?5%(ripple P-P: max. 5%) |
| Connection type | Radial cable connector type |
| Protection structure | IP50 |
| Approval | @(CE) |
| Environment_Ambient temperature | -10 to 70?? storage: -25 to 85??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket: 2 |
| Weight | Approx. 391g(approx. 330g) |

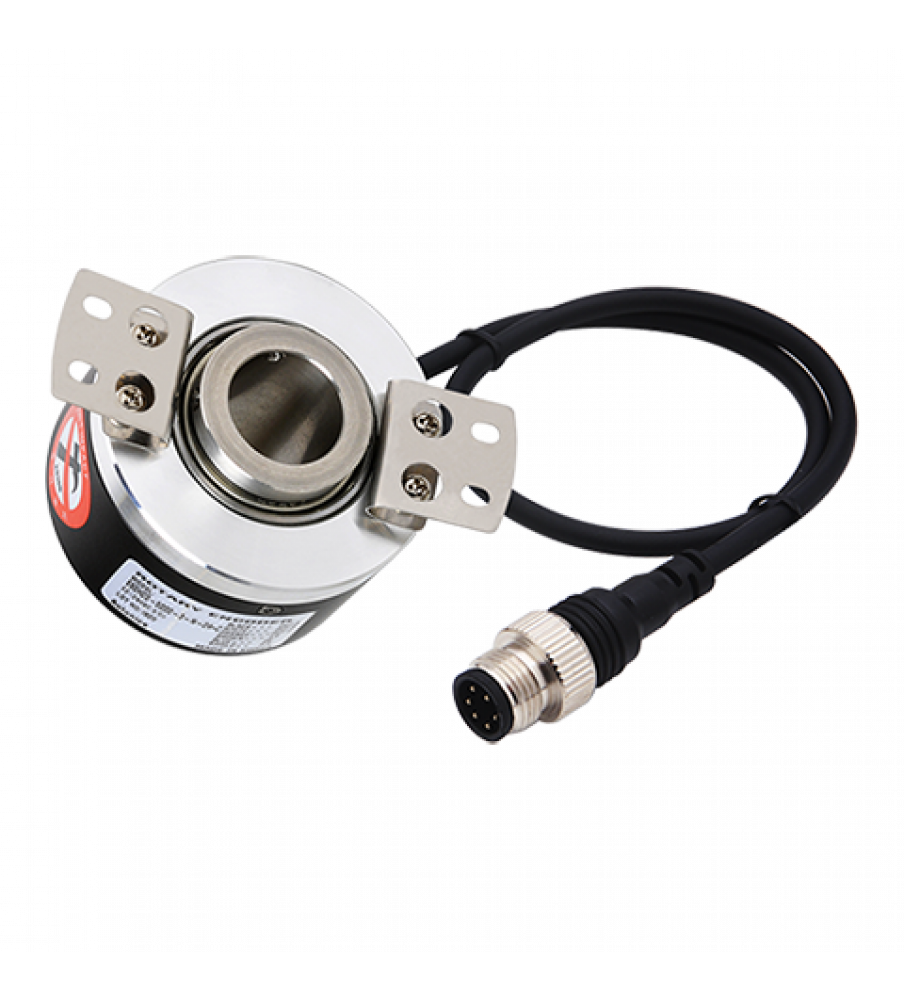

Tags: Encoder, Incremental, ?60mm, 20mm Hollow Shaft, 100 PPR, A, B, Z, NPN open collector output, 12-24VDC, Cable outgoing connector type
