| Shaft inner diameter | ?12mm |
|---|---|
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 90gf.cm(max. 0.00882N.m) |
| Resolution | 3600P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 5VDC @(=) ?5%(ripple P-P: max. 5%) |
| Connection type | Radial connector type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70?? storage: -25 to 85??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 310g(approx. 200g) |

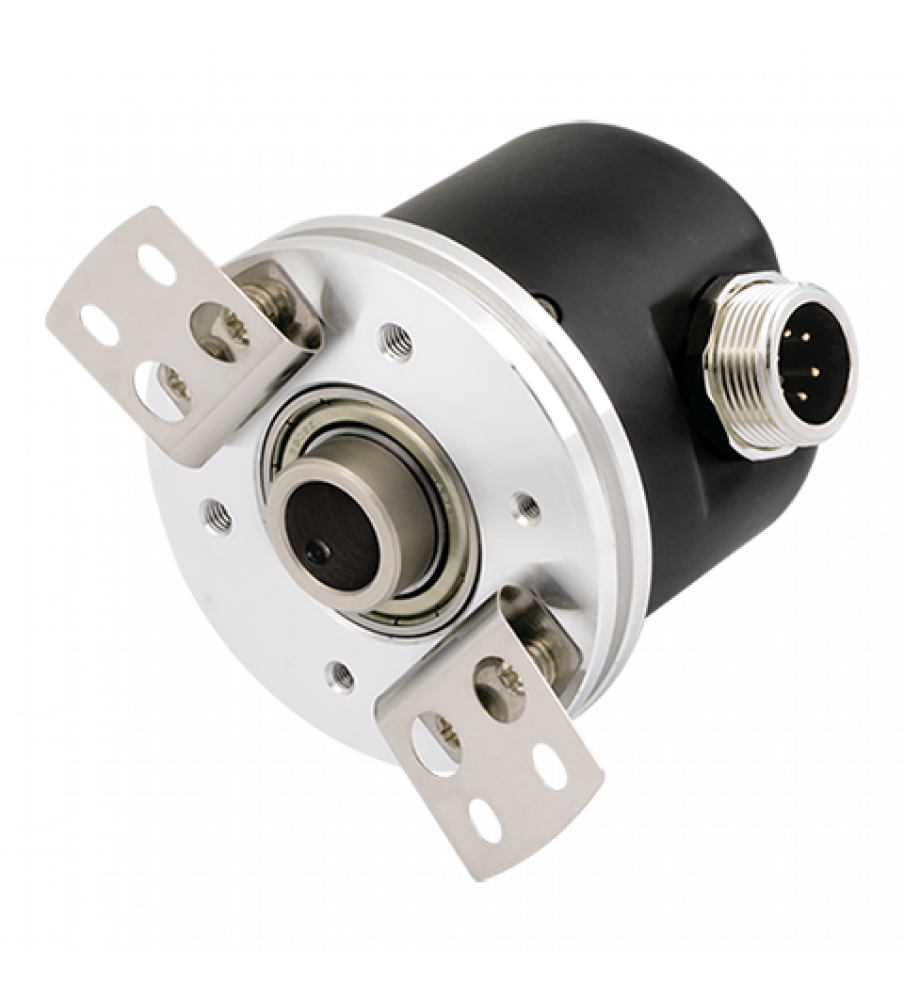

Tags: Encoder, Incremental, ?58mm, 12mm Hollow built-in, 3600 PPR, A, A/, B, B/, Z, Z/ Line driver output, 5VDC, Side outgoing Connector
