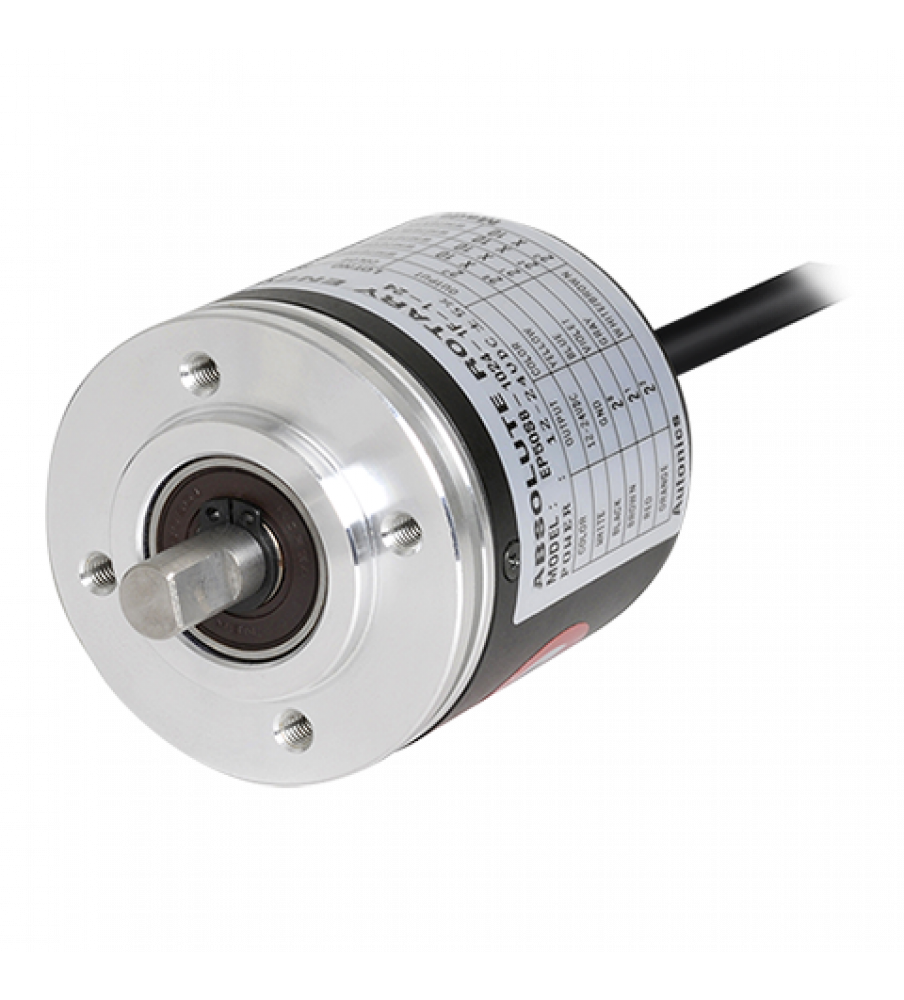

Encoder, Absolute, 50mm Dia., Shaft, 256 Divisions Per Rev, Gray Code, NPN Output, CW Increase, 5 VDC
| Rotary Encoder | |
| Type | Absolute (Single-turn) |
| Shaft type | 50 mm Shaft |
| Resolution | 256 |
| Output phase | GRAY |
| Control output | NPN |
| Power supply | 5VDC andaring;andplusmn;5% |
| Connector type | Cable |
| Rotating Direction | CW |
