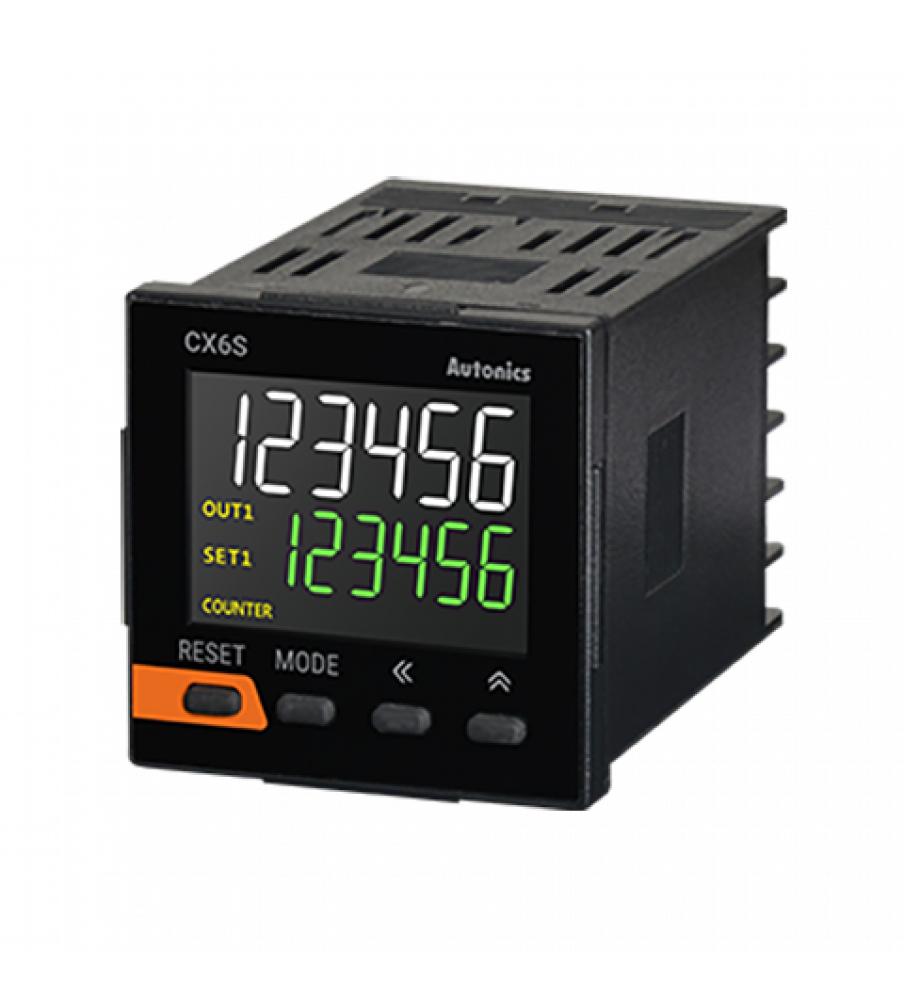

Counter/Timer, W48xH48mm, 6-Digit, LCD, 2 Preset, Free Voltage(24-240VAC/VDC) Input, Prescale value setting, 2 Relay SPST(2a) 250VAC 3A, 24-48VDC / 24VAC

0 reviews Write a review

Qty

Data sheet
Display method	Counting display part- 2-digit 7-segment LCD, 4-digit 11-segment LCD Setting value display part- 6-digit 7-segment LCD
Operation method	Counter: Count up, Count down, Count up/down Timer: Count up, Count down
Terminal	Terminal block
Output Operation	SIGNAL ON DELAY, POWER ON DELAY, ON-OFF DELAY
Power supply	24VAC~ 50/60Hz, 24-48VDC @(=)
Time operation	POWER ON START SIGNAL ON START
Signal Input Method	Free voltage input
Max. Counting Speed	20 [cps]
Min. signal Width	25ms
Memory Protection	Approx. 10 years
Setting range	0.001 sec to 999.999 sec, 0.01 sec to 9999.99 sec, 0.1 sec to 99999.9 sec, 1 sec to 999999 sec, 0.01 sec to 99 min 59.99 sec, 0.1 sec to 999 min 59.9 sec, 1 sec to 9999 min 59 sec, 0.1 min to 99999.9 min, 1 min to 999999 min, 1 sec to 99 hour 59 min 59 sec, 1 min to 9999 hour 59 min, 0.1 hour to 99999.9 hour
Control output_Type	2-stage preset
Control output_Relay	SPST (1a): 2
Protection structure	IP50(front panel)
Approval	@(CE)
Counter_Counting range	-99999 to 999999
Counter_Scale	Decimal point up to fifth digit
Environment_Ambient temperature	-10 to 55?? storage: -25 to 65??/td>
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Weight	Approx. 159g(approx. 114g)
