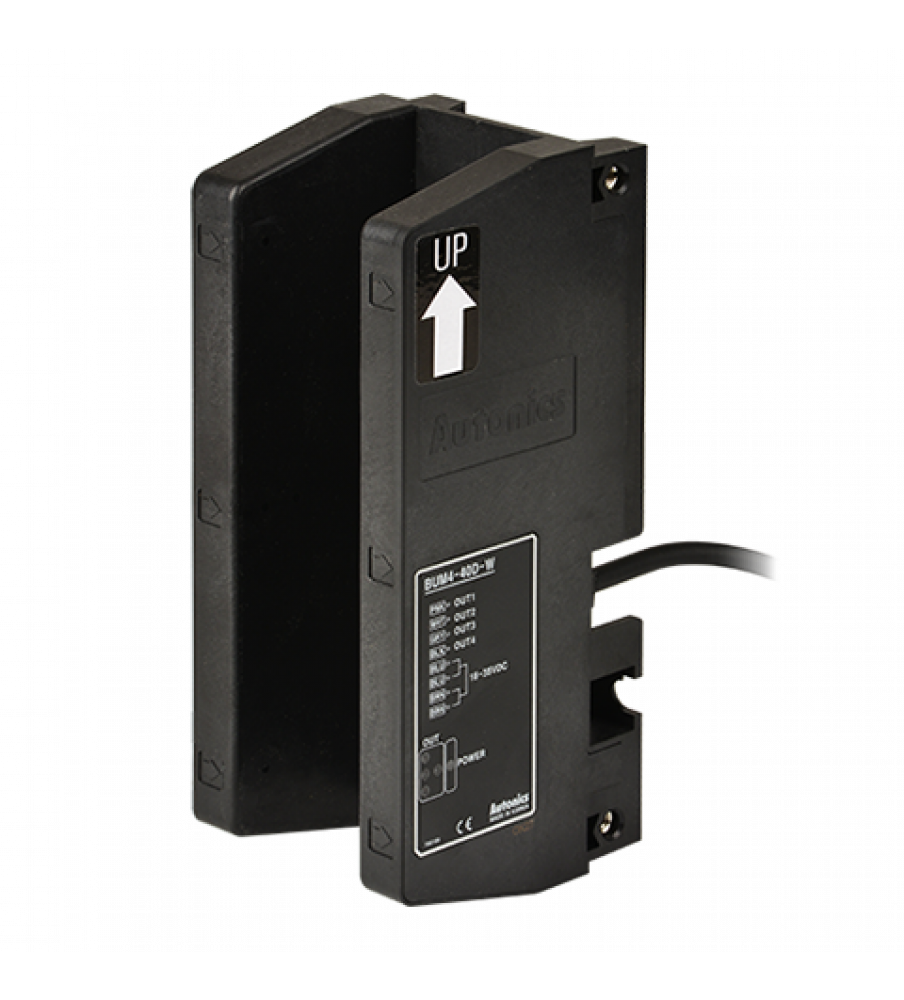

BUM4-40D-W-2M/A
- Brand: Autonics
- Product Code:
- Availability: 2-3 Days
Data sheet | Sensing type | Through-beam type |
| Sensing Cannel | 4-channel |
| Sensing distance | 40mm |
| Sensing target | Opaquematerial of min. ?4mm |
| Light source | Infrared LED(940nm) |
| Response time | Max. 1ms |
| Power supply | 18-35VDC @(=) ?10%(ripple P-P: max. 10%) |
| Current consumption | Max. 50mA |
| Sensitivity adjustment | Fixed |
| Operation mode | Dark ON |
| Control output | NPN open collector(individual 4 outputs) |
| Connection type | Cable type(?6, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 65?? storage: -25 to 70??/td> |
| Protection structure | IP65 |
| Approval | @(CE) |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case, Cover: ABS |
| Bracket | H01/H04(G01) |
| Weight | Approx. 1.5kg(approx. 500g) |
| Photoelectric Sensor |
| Sensing type |
Convergent reflective type |
| Sensing distance |
30mm |
| Response speed |
Opaque, Translucent material(min. sensing target: Ø0.15mm) |
| Light Source |
Red LED (650 nm) |
| Power supply |
12-24VDC ±10%(ripple P-P: max. 10%) |
| Operation mode |
Light ON |
| Control output |
NPN open collector |
| Connection |
Cable type(Ø2.5, 2m) |
Tags:
Sensor,
Photo,
4-CH U-Shaped Type,
Dark On,
NPN Output(Individual 4 output),
2M Cable,
H01/H04 Bracket,
18-35 VDC
