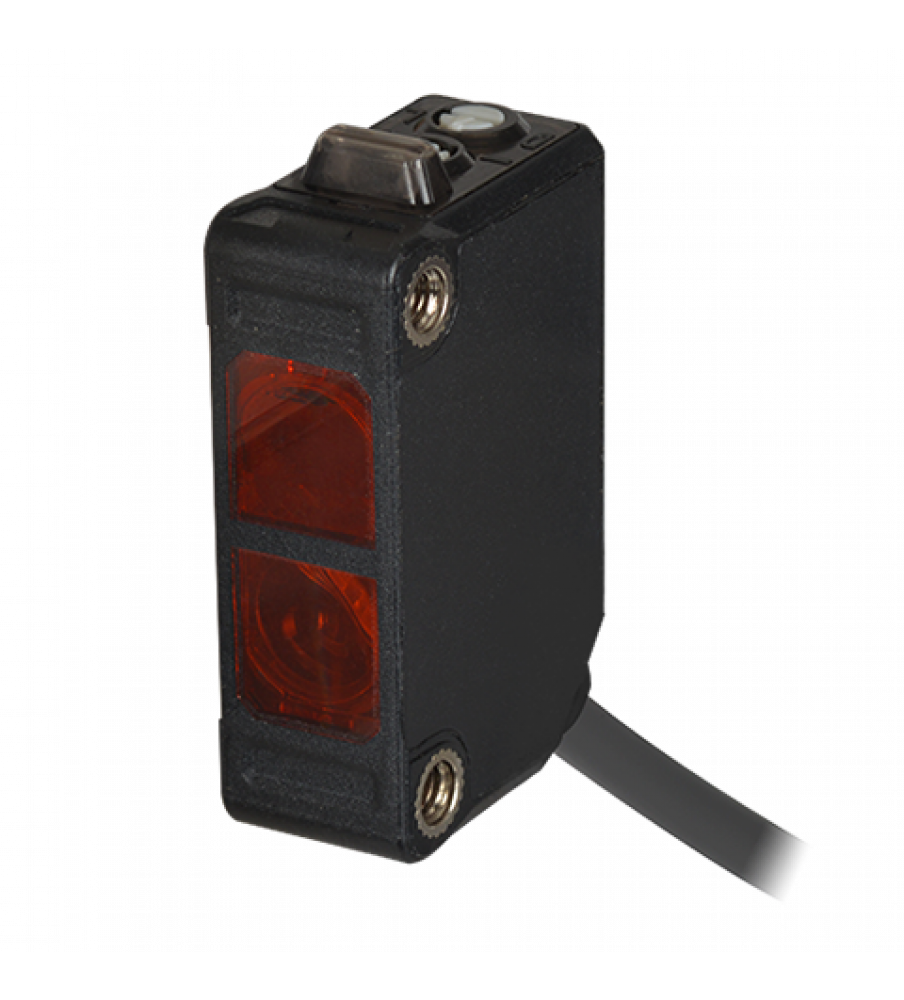

Sensor, Photo, Oil Resistant Type, Retroflective Type, 3M Sensing distance, Light & Dark On, PNP Output, 10-30 VDC

0 reviews Write a review

Qty

Data sheet
Oil proof/oil resistant	Oil resistant type
Sensing type	Retroreflective type(built-in polarizing filter)
Sensing distance	3m
Sensing target	Opaque material of min. ?75mm
Light source	Red LED(660nm)
Response time	Max. 1ms
Power supply	10-30VDC @(=) ?10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	PNP open collector
Connection type	?4mm, 3-wire, 2m (emitter of through-beam type: ?4mm, 2-wire, 2m) (AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: ?1mm)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 60?? storage: -40 to 70??/td>
Protection structure	IP67 (IEC standard), IP67G (JEM standard)
Approval	@(CE)
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic
Accessories_Common	Mounting bracket, M3 bolt: 2, adjustment screwdriver
Accessories_Individual	Reflector(MS-2S)
Weight	Approx. 115g(approx. 50g)

Photoelectric Sensor
Sensing type	Through-Beam
Sensing distance	15 m
Response speed	Max. 1ms
Light Source	Infrared
Power supply	12 - 24 VDC
Operation mode	Light ON - Dark On
Control output	NPN open collector / PNP open collector
Connection	Connector Type
