| Basic Step Angle [FULL/HALF] | 1.8?/0.9? |
|---|---|
| Max. holding torque | 29.57kgf.cm |
| Rotor Moment Of Inertia | 690g?cm? |
| Winding Resistance | 1.3? |
| Rated current | 3.5A/Phase |
| Motor length | 119.8mm |
| Shaft type | Single shaft |
| Operation method | Bipolar |
| Resolution | 10,000PPR(2,500PPR?4-multiply) |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Max. response frequency | 300 |
| Protection structure | IP30 |
| Motor phase | 2-Phase |
| Number Of Axes | 1-axis |
| Environment_Ambient temperature | 0 to 50?? storage: -20 to 70??/td> |
| Environment_Ambient humidity | 20 to 85%RH, storage: 15 to 90%RH |
| Weight | Approx. 1.58kg(approx. 1.44kg) |

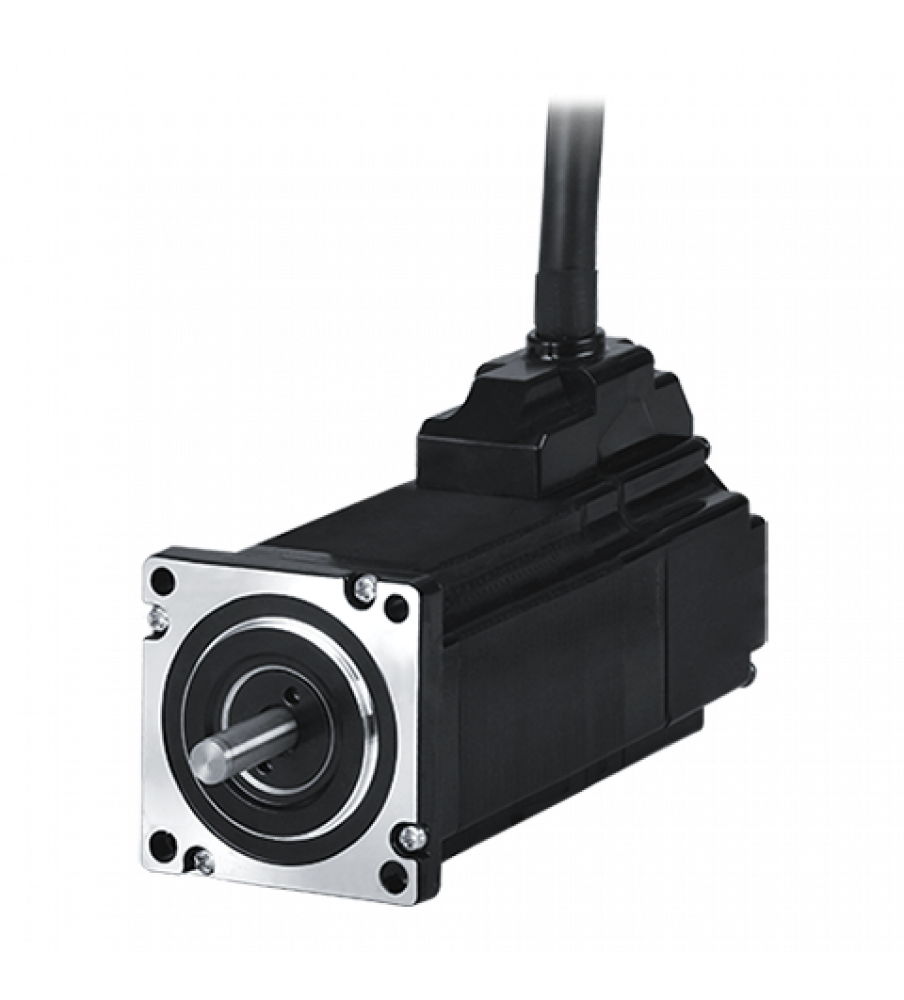

Tags: 2-Phase Closed-Loop Stepper Motor, Frame Size 60 X 60 mm, Length 119.8 mm, Encoder Resolution Up to 10, 000PPR
