| Basic Step Angle [FULL/HALF] | 0.72?/0.36? |
|---|---|
| Max. holding torque | 16.6kgf.cm |
| Rotor Moment Of Inertia | 560g?cm? |
| Winding Resistance | 1.8? |
| Rated current | 1.4A/Phase |
| Motor length | 89mm |
| Shaft type | Dual shaft |
| Wire connection | Pentagon |
| Protection structure | IP30 |
| Approval | @(CE) |
| ElectroMagnetic brake_Rated excitation voltage | 24VDC @(=)?10%(no-polarity) |
| ElectroMagnetic brake_Rated excitation current | 0.33A |
| ElectroMagnetic brake_Static friction torque | 8kgf.cm |
| ElectroMagnetic brake_Rotation part inertia moment | 29?10@(^-7)kgf.cm? |
| ElectroMagnetic brake_B type brake | Power on: brake is released, power off: brake is operating |
| ElectroMagnetic brake_Operating time | Max. 25ms |
| ElectroMagnetic brake_Releasing time | Max. 20ms |
| Weight | Approx. 1.57kg(approx. 1.3kg) |

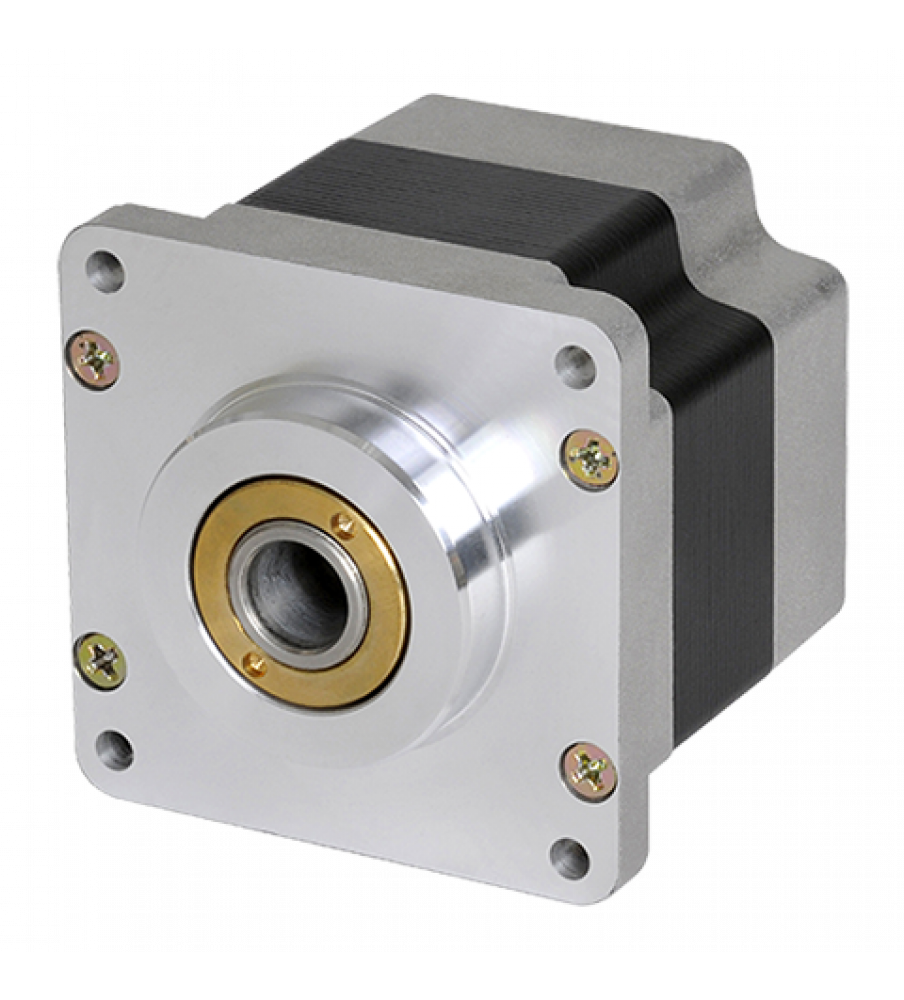

Tags: 5 Phase Stepper Motor, 60mm Square, Hollow Dual Shaft Type, 1.4A/Phase, 16.6 kgf-cm Torque
