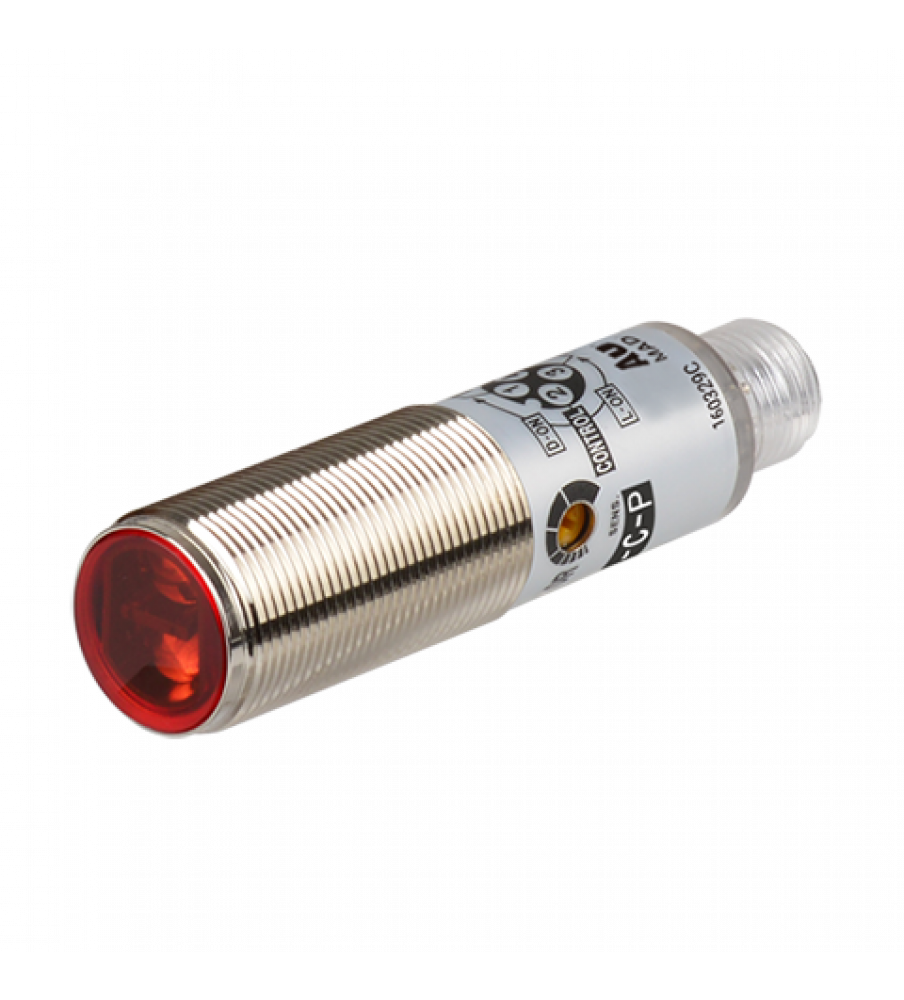

Sensor, Photo, Metal body, Diffuse reflective, 100mm Sensing Distance, Light & Dark On, NPN Output, 10-30 VDC
| Photoelectric Sensor | |
| Sensing type | Diffuse reflective type |
| Sensing distance | 100mm |
| Light Source | Infrared LED(850nm) |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | NPN open collector |
Tags: BRQM100-DDTA
