Data sheet?
| Control phase | Single-phase |
|---|---|
| Heatsink | Heatsink |
| Mounting type | Panel, DIN rail |
| Rated input voltage | 4-30VDC  |
| Rated load voltage | 48-480VAC~ |
| Dielectric strength | 2500VAC~ 50/60Hz 1 min (Input-Output, Input/Output-Case) |
| Rated load current | 60A |
| Function | Zero cross turn-on |
| Approval |   |
| Environment_Ambient temperature | -30 to 80?? storage: -30 to 100??The rated load current capacity is different depending on ambient temperature. Refer to '??SSR Derating Curve'.) |
| Environment_Ambient humidity | 45 to 85% RH, storage: 45 to 85% RH |
| Weight | Approx. 770g(approx. 680g) |
??he weight includes packaging. The weight in parenthesis is for unit only.
??nvironment resistance is rated at no freezing or condensation.
??or wiring the terminal, an O-ring terminal must be used.

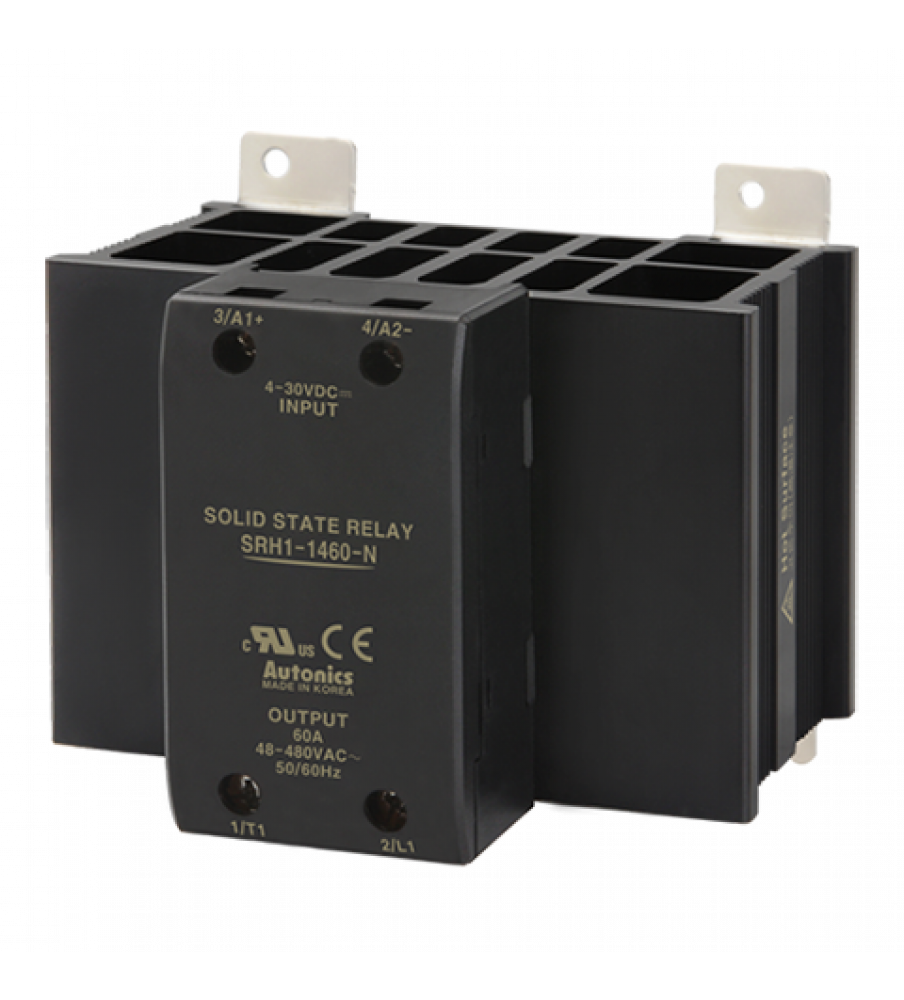

Tags: SRH1-1460-N
