Data sheet?
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
|---|---|
| Protection structure | IP52 |
| Approval |    (LED blocks are except certifications) |
| Weight_Mounting hole_?30 | Approx. 21.5g |
| Weight_Housing | Approx. 7g |
| Weight_Contact block_Singular type A/B contact | Approx. 11g |
| Illuminated | Non-illuminated |
| Letter marking | None(no printing) |
| Button type | Flush |
| Color | Blue |
| Contact block | A contact: 2, B contact: 1 |
| Contact block type | Singular type |
| Environment_Ambient temperature | -15 to 55?? storage: -25 to 65??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
??nvironment resistance is rated no freezing or condensation.
??he control unit, contact blocks, LED blocks are sold separately.

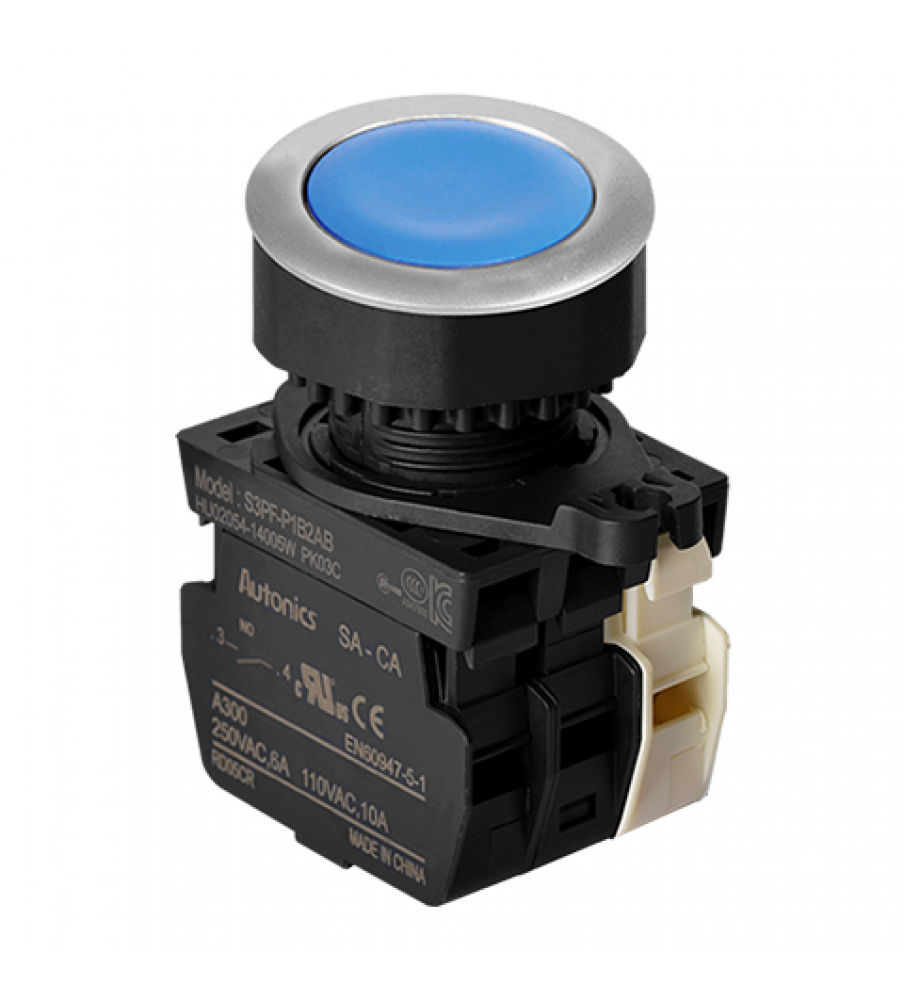

Tags: S3PF-P1B2AB
