Data sheet?
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
|---|---|
| Protection structure | IP52 |
| Approval |   (LED blocks are except certifications) |
| Weight_Mounting hole_?22/25 | Approx. 22.5g |
| Weight_Housing | Approx. 7g |
| Weight_Contact block_Modular type A/B contact | Approx. 10g |
| Operation type | Push-lock, Turn-reset |

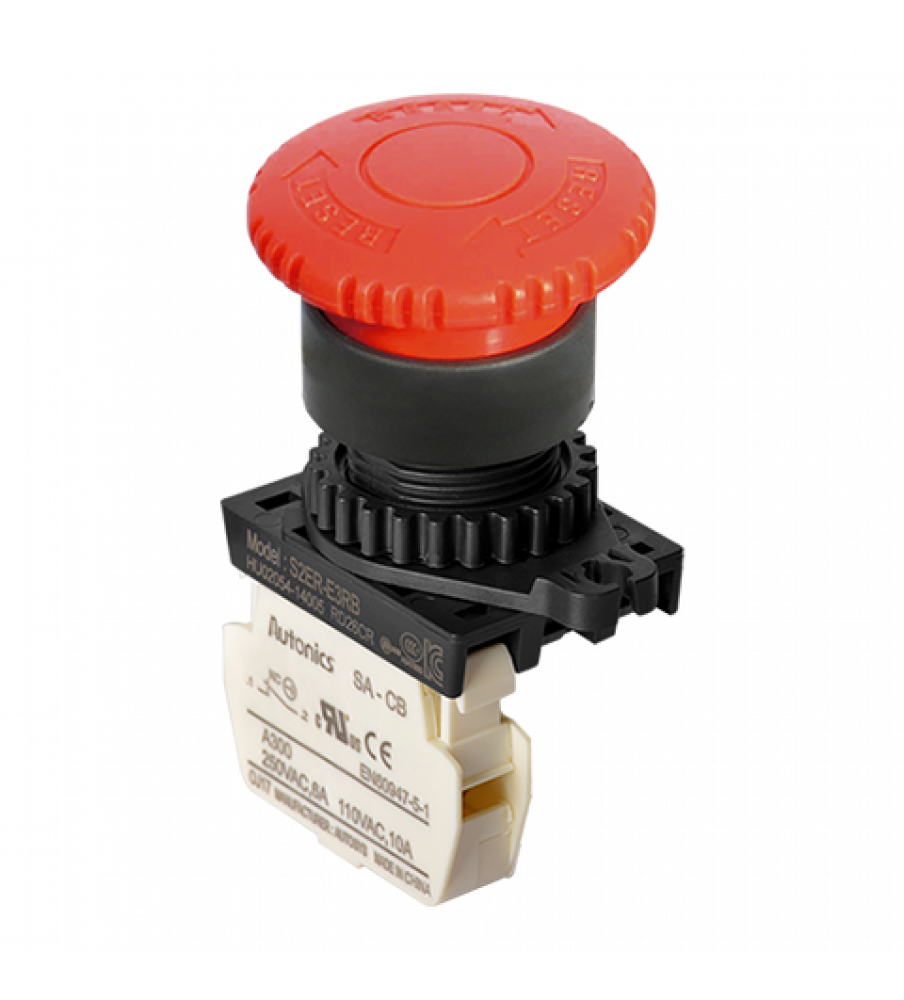

| Button type | D40(short head, non-illuminated) |
| Color | Red |
| Contact block | B contact: 1 |
| Contact block type | Modular type |
| Environment_Ambient temperature | -15 to 55?? storage: -25 to 65??/td> |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
??nvironment resistance is rated no freezing or condensation.
??he control unit, contact blocks, LED blocks are sold separately.
Tags: S2ER-E3RBM
