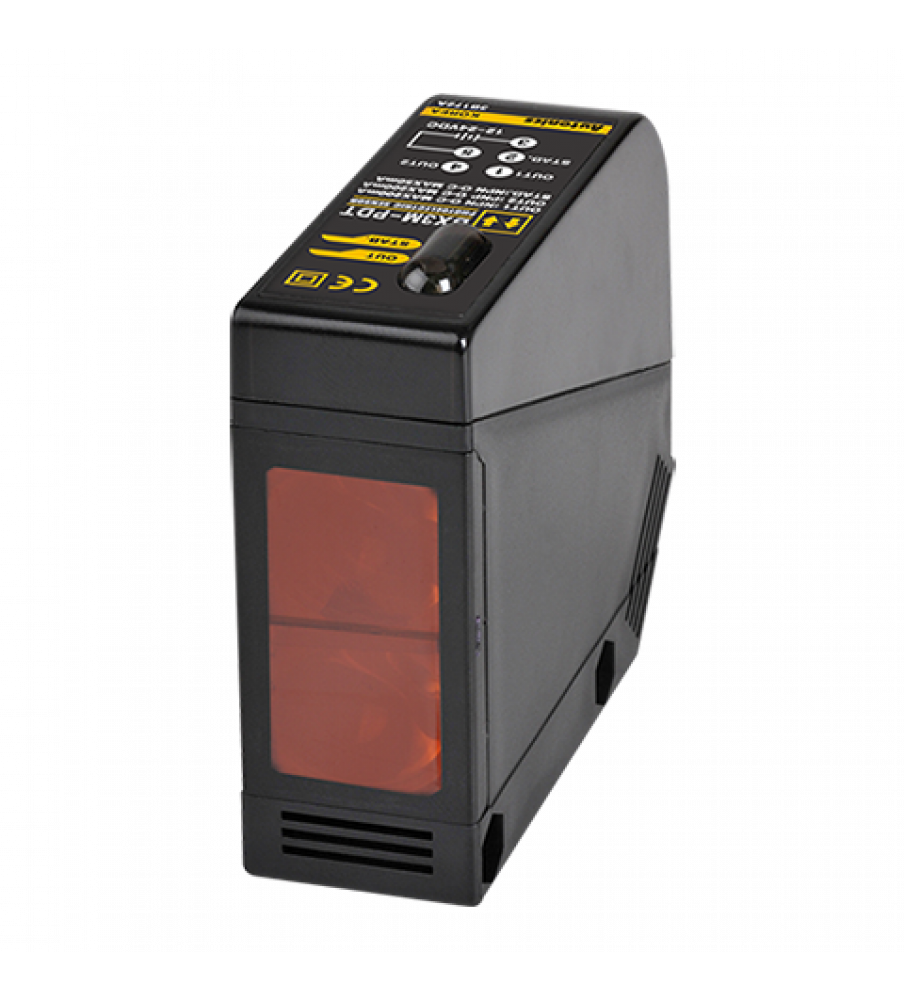

Sensor, Photo, Polarized Retroreflective, 3M Sensing Distance, Light & Dark On, NPN & PNP Output, 12-24 VDC
| Photoelectric Sensor | |
| Sensing type | Retroreflective type(built-in polarizing filter) |
| Sensing distance | 3m |
| Response speed | Opaque material of min. Ø15mm |
| Light Source | Infrared LED(850nm) |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | NPN, PNP open collector simultaneous output |
| Connection | Terminal block type |
Tags: BX3M-PDT
