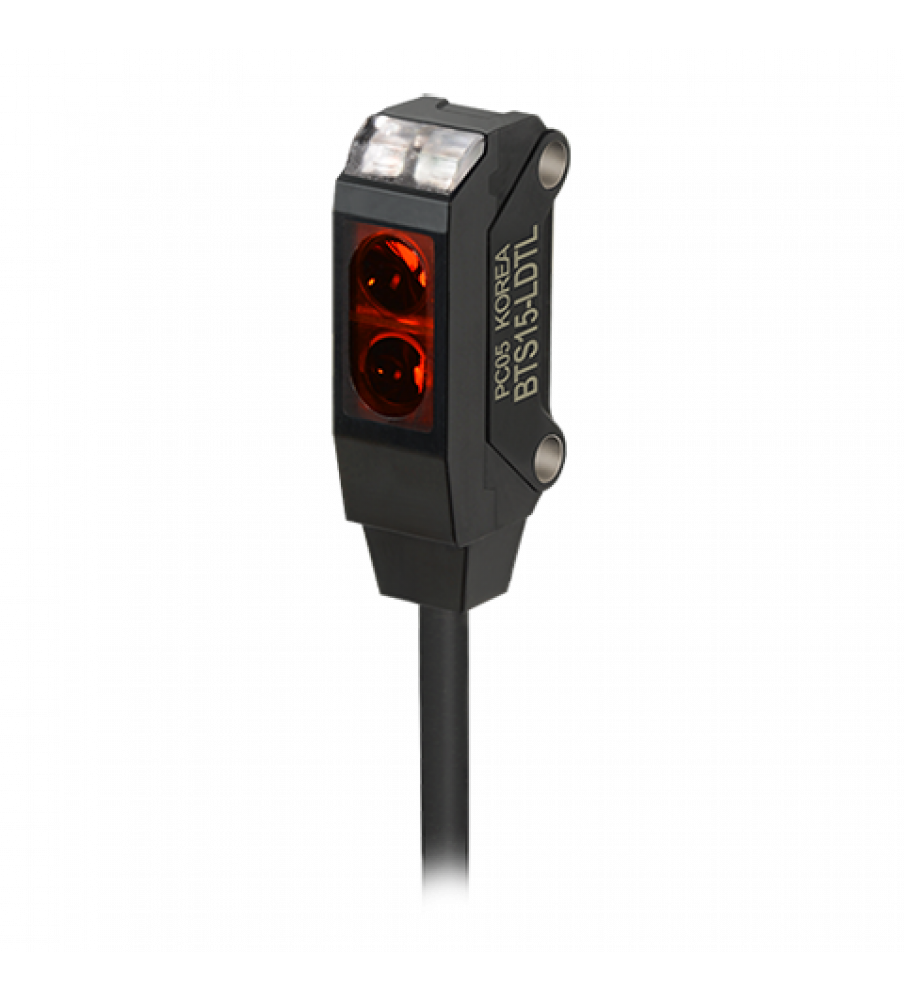

Sensor, Photo, Convergent Reflective Type, 5~15mm Sensing Distance, Light On, NPN Output, 12-24VDC
| Photoelectric Sensor | |
| Sensing type | Convergent reflective type |
| Sensing distance | 5 to 15mm |
| Response speed | Opaque, Translucent material(min. sensing target: Ø0.15mm) |
| Light Source | Red LED (650 nm) |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Operation mode | Dark ON |
| Control output | NPN open collector |
| Connection | Cable type(Ø2.5, 2m) |
Tags: BTS15-LDTL
