Data sheet?
| Sensing type | Narrow beam reflective type |
|---|---|
| Sensing distance | 200mm |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED(850nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC  ?10%(ripple P-P: max. 10%) |
| Current consumption | Max. 45mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | PNP open collector |
| Connection type | Cable type(?5, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -10 to 60?? storage: -25 to 75??/td> |
| Protection structure | IP66 |
| Approval |  |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 20% at rated sensing distance |
| Material | Case - Brass, Ni-plate Sensing part - Polycarbonate lens |
| Accessories | M18 fixing nut: 2, washer:1, adjustment screwdriver |
| Weight | Approx. 160g(approx. 120g) |
??on-glossy white paper 100?100mm.
??he weight includes packaging. The weight in parenthesis is for unit only.
??ightening torque for connector is 0.39 to 0.49N.m.
??he temperature or humidity mentioned in Environment indicates a non freezing or condensation.

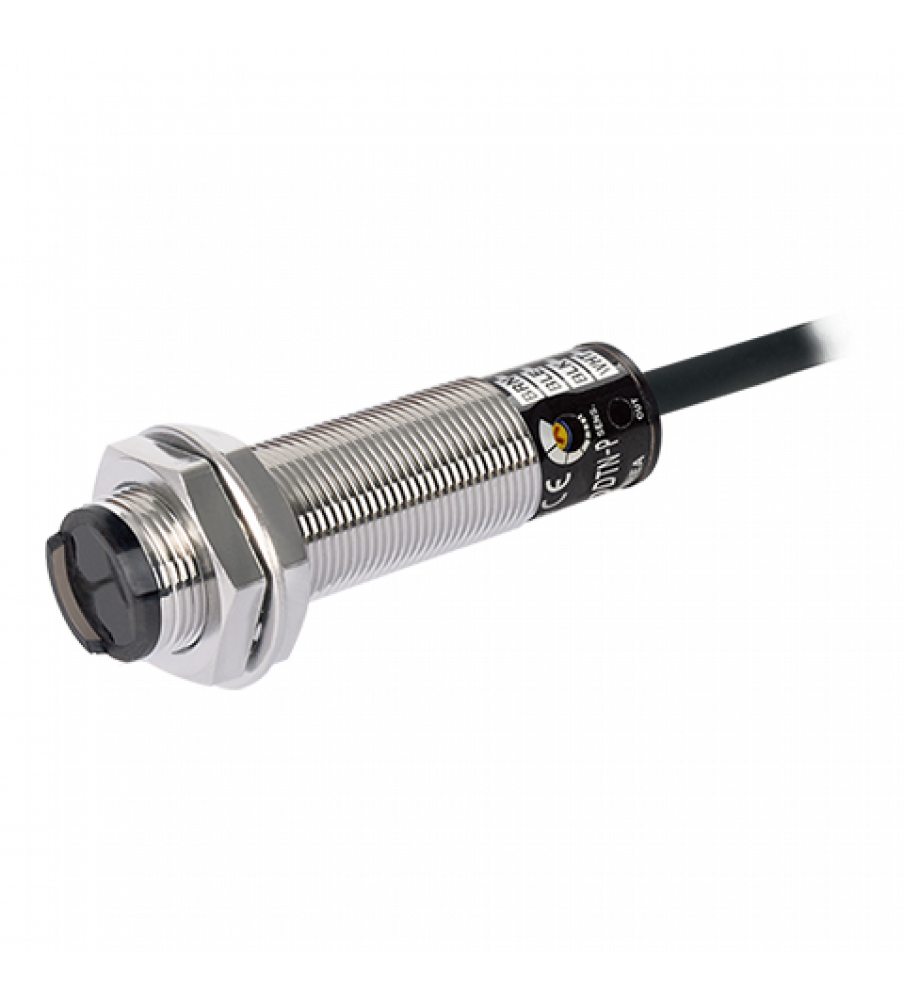

| Photoelectric Sensor | |
| Sensing type | Narrow beam reflective type |
| Sensing distance | 200 mm |
| Light Source | Infrared LED(850nm) |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | PNP open collector |
