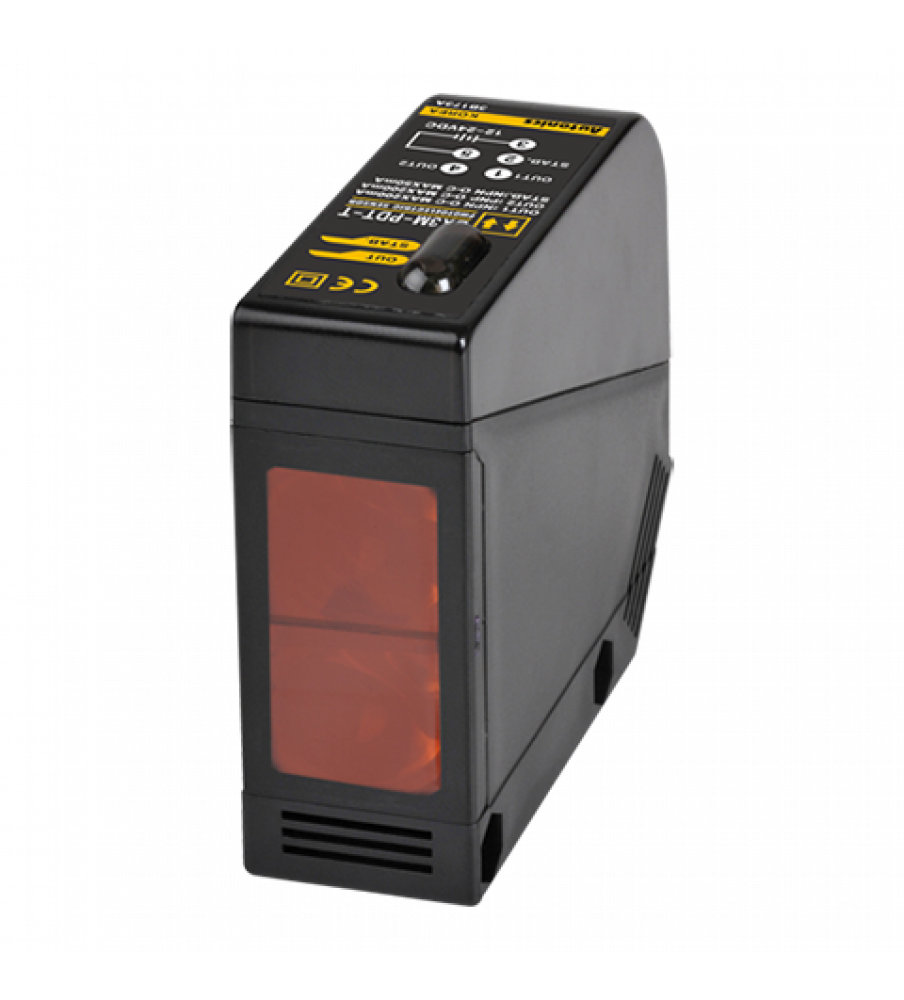

Sensor, Photo, Polarized Retroreflective, 3M Sensing Distance, Light & Dark On, NPN & PNP Output, Timer function, 12-24 VDC

0 reviews Write a review

Qty

Data sheet
Sensing type	Retroreflective type(built-in polarizing filter)
Sensing distance	3m
Sensing target	Opaque material of min. ?60mm
Light source	Red LED(660nm)
Response time	Max. 1ms
Power supply	12-24VDC @(=) ?10%(ripple P-P: max. 10%)
Current consumption	Max. 50mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	NPN, PNP open collector simultaneous output
Timer function	Timer Function
Connection type	Terminal block type
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-20 to 55?? storage: -25 to 70??/td>
Protection structure	IP66
Approval	@(CE)
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Accessories_Individual	Reflector(MS-3)
Accessories_Common	Adjuster driver, Fixing bracket, Bolts, Nuts
Weight	Approx. 142g

Photoelectric Sensor
Sensing type	Retroreflective type(built-in polarizing filter)
Sensing distance	3m
Response speed	Opaque material of min. Ø15mm
Light Source	Infrared LED(850nm)
Power supply	12-24VDC ±10%(ripple P-P: max. 10%)
Operation mode	Light ON/Dark ON(set by switch)
Control output	NPN, PNP open collector simultaneous output
Connection	Terminal block type
