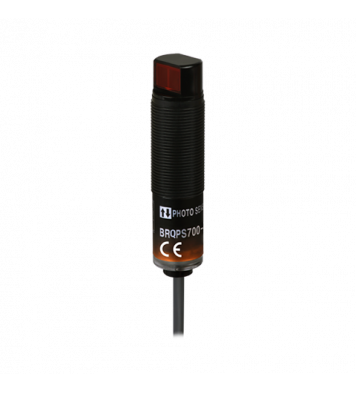

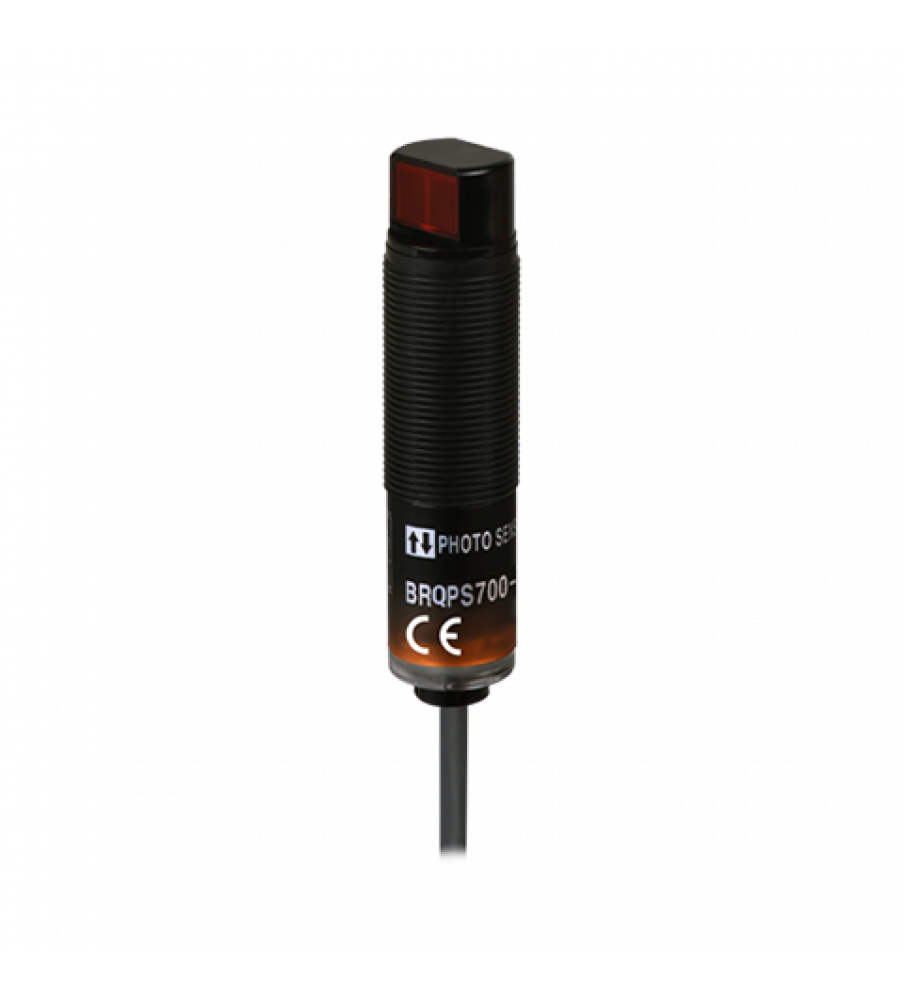

Sensor, Photo, Plastic body, Side sensing type, Diffuse reflective, 700mm Sensing Distance, Light & Dark On, PNP Output, 10-30 VDC

0 reviews Write a review

Qty

Data sheet
Sensing type	Diffuse reflective type
Sensing distance	700mm
Sensing target	Opaque, Translucent material
Light source	Red LED(660nm)
Response time	Max. 1ms
Power supply	10-30VDC @(=) ?10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by control wire)
Control output	PNP open collector
Connection type	Cable type(?4, 2m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 60?? storage: -30 to 70??/td>
Protection structure	IP67
Approval	@(CE)
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 20% at rated sensing distance
Material	Case: Polycarbonate Lens, Lens cover: Polymethyl Methacrylate Acrylic
Accessories_Common	M18 fixing nut: 2, adjustment screwdriver
Weight	Approx. 130g(approx. 70g)

Photoelectric Sensor
Sensing type	Diffuse reflective type
Sensing distance	700mm
Light Source	Red LED(660nm)
Power supply	10-30VDC ±10%(ripple P-P: max. 10%)
Operation mode	Selectable Light ON or Dark ON by control wire (white)
Control output	NPN open collector
