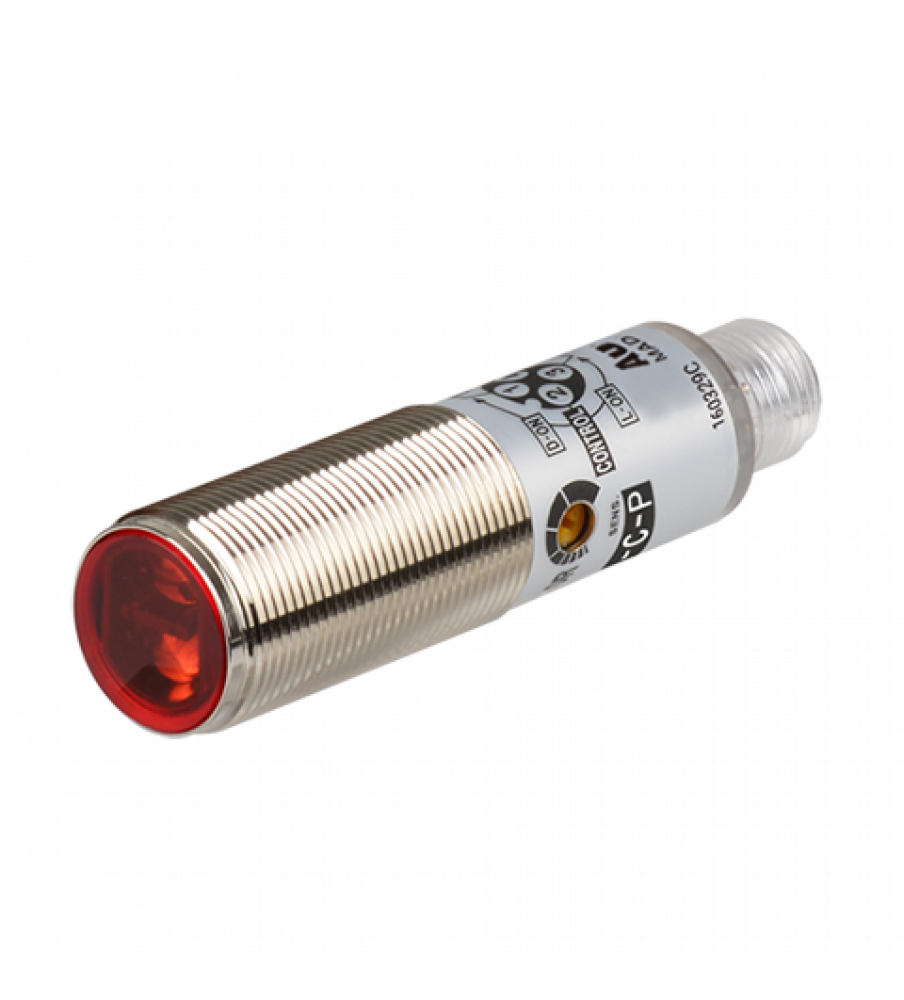

BRQM100-DDTA-C-P
- Brand: Autonics
- Product Code:
- Availability: 58
Data sheet | Sensing type | Diffuse reflective type |
| Sensing distance | 100mm |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED(850nm) |
| Response time | Max. 1ms |
| Power supply | 10-30VDC @(=) ?10%(ripple P-P: max. 10%) |
| Current consumption | Max. 30mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Selectable Light ON or Dark ON by control wire (white) |
| Control output | PNP open collector |
| Connection type | ?4mm, 4-wire, 2m (emitter of through-beam type: ?4mm, 2-wire, 2m)(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: ?1mm) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60?? storage: -30 to 70??/td> |
| Protection structure | IP67(IEC standard) |
| Approval | @(CE) |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 20% at rated sensing distance |
| Material | ??ase: brass, Ni-plate??ens, Lens cover: polymethyl methacrylate acrylic |
| Accessories_Common | M18 fixing nut: 2, adjustment screwdriver |
| Weight | Approx. 140g(approx. 30g) |
| Photoelectric Sensor |
| Sensing type |
Diffuse reflective type |
| Sensing distance |
100mm |
| Light Source |
Infrared LED(850nm) |
| Power supply |
12-24VDC ±10%(ripple P-P: max. 10%) |
| Operation mode |
Light ON/Dark ON(set by control wire) |
| Control output |
NPN open collector |
Tags:
Sensor,
Photo,
Metal body,
Diffuse reflective,
100mm Sensing Distance,
Light & Dark On,
PNP Output,
Connector type,
10-30 VDC
