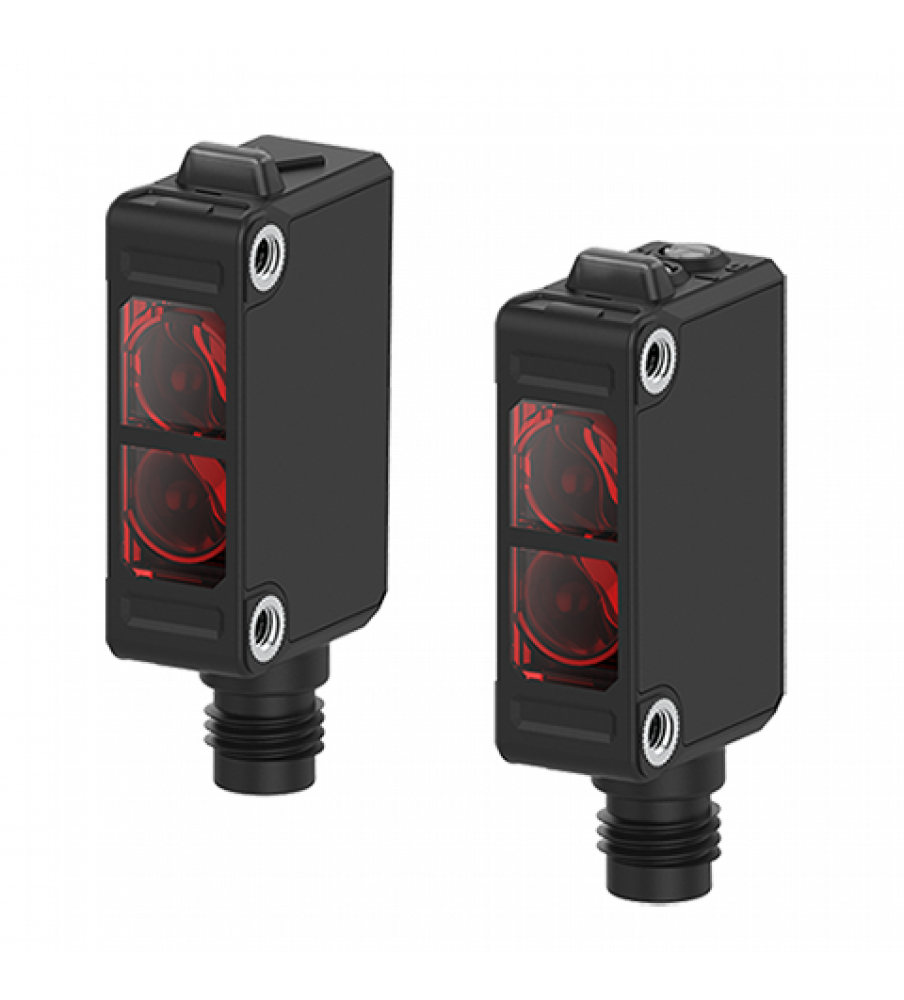

| Sensing type | Through-beam type |
|---|---|
| Sensing distance | 30m |
| Sensing target | Opaque material of min. ?15mm |
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power supply | 10-30VDC @(=) ?10%(ripple P-P: max. 10%) |
| Current consumption | Emitter/Receiver: Max. 20mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | PNP open collector |
| Connection type | ?4mm, 3-wire, 2m (emitter of through-beam type: ?4mm, 2-wire, 2m) (AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: ?1mm) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60?? storage: -40 to 70??/td> |
| Protection structure | IP65(IEC standard) |
| Approval | @(CE) @(CULUS) |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | ??ase: polycarbonate ??ED CAP: polycarbonate ??ens, Lens cover: polymethyl methacrylate |
| Accessories_Common | Mounting bracket, M3 bolt: 4, adjustment screwdriver |
| Weight | Approx. 65g(approx. 12g) |
| Photoelectric Sensor | |
| Sensing type | Through-Beam |
| Sensing distance | 15 m |
| Response speed | Max. 1ms |
| Light Source | Infrared |
| Power supply | 12 - 24 VDC |
| Operation mode | Light ON - Dark On |
| Control output | NPN open collector / PNP open collector |
| Connection | Connector Type |
Tags: Sensor, Photo, Through beam, 30M Sensing distance, Connector Type, Light & Dark On, PNP Output, 10-30 VDC
