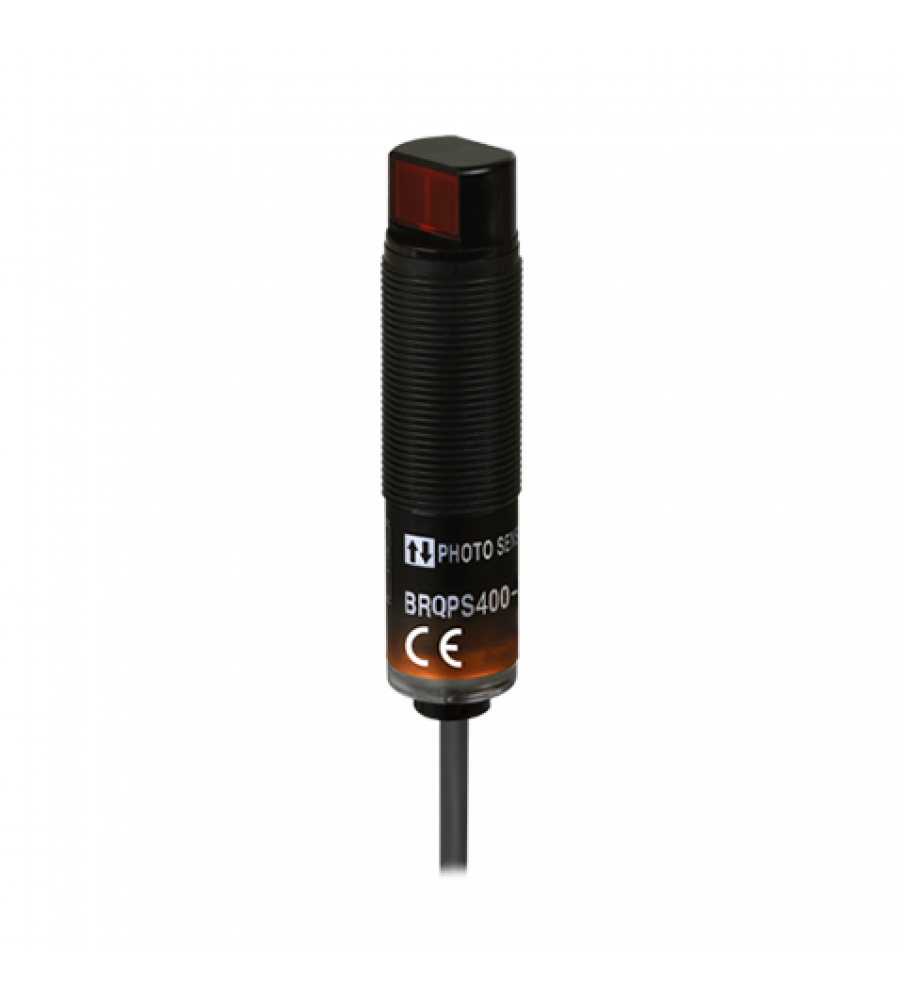

Sensor, Photo, Plastic body, Side sensing type, Diffuse reflective, 400mm Sensing Distance, Light & Dark On, PNP Output, 10-30 VDC
| Photoelectric Sensor | |
| Sensing type | Diffuse reflective type |
| Sensing distance | 400mm |
| Light Source | Red LED(660nm) |
| Power supply | 10-30VDC ±10%(ripple P-P: max. 10%) |
| Operation mode | Selectable Light ON or Dark ON by control wire (white) |
| Control output | NPN open collector |
Tags: BRQPS400-DDTA-P
