Data sheet?
| Sensing type | Diffuse reflective type |
|---|---|
| Sensing distance | 100mm |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED(940nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC  ?10%(ripple P-P: max. 10%) |
| Current consumption | Max. 45mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | PNP open collector |
| Connection type | Connector type(M12) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -10 to 60?? storage: -25 to 75??/td> |
| Protection structure | IP66 |
| Approval |  |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 20% at rated sensing distance |
| Material | Case-Polyamide(black), Sensing part-Polycarbonate lens |
| Accessories_Individual | Adjuster driver |
| Accessories_Common | Fixing nuts |
| Weight | Approx. 70g(approx. 30g) |
??on-glossy white paper 50?50mm.
??he weight includes packaging. The weight in parenthesis is for unit only.
??ightening torque for connector is 0.39 to 0.49N.m.
??he temperature or humidity mentioned in Environment indicates a non freezing or condensation.

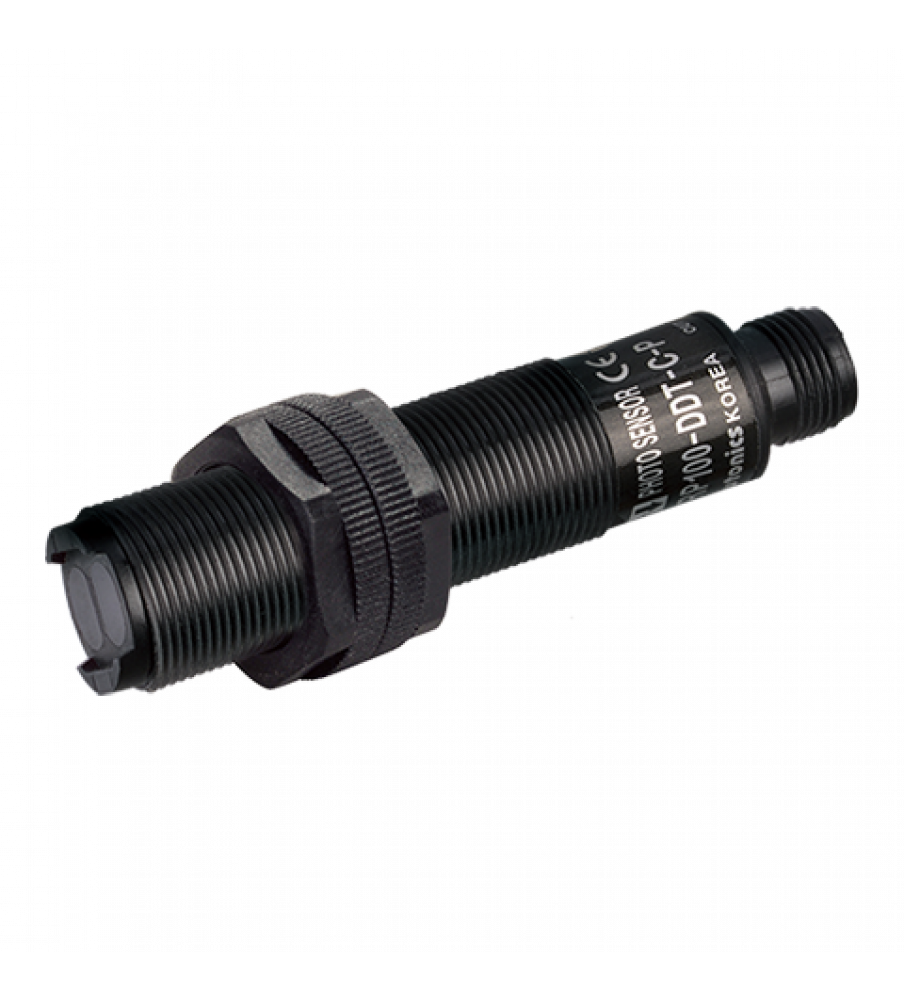

| Photoelectric Sensor | |
| Sensing type | Diffuse reflective (Plastic case) |
| Sensing distance | 100 mm |
| Light Source | Infrared LED(940nm) |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | NPN open collector |
