Data sheet?
| Wire type and power | AC 2-wire type 100-240VAC~ |
|---|---|
| Sensing side diameter | M18 |
| Sensing distance | 8mm |
| Standard sensing target | 50?50?1mm(iron) |
| Response frequency | 20Hz |
| Current specification | Leakage current: Max. 2.2mA |
| Control output | Normally Open |
| Material | Polyamide 6 |
| Protection structure | IP66 |
| Environment_Ambient temperature | -25 to 70?? storage: -30 to 80??/td> |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 20% of sensing distance |
| Weight | Approx. 82g(approx. 70g) |
??he response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.
??he weight includes packaging. The weight in parenthesis is for unit only.
??he temperature or humidity mentioned in Environment indicates a non freezing or condensation.

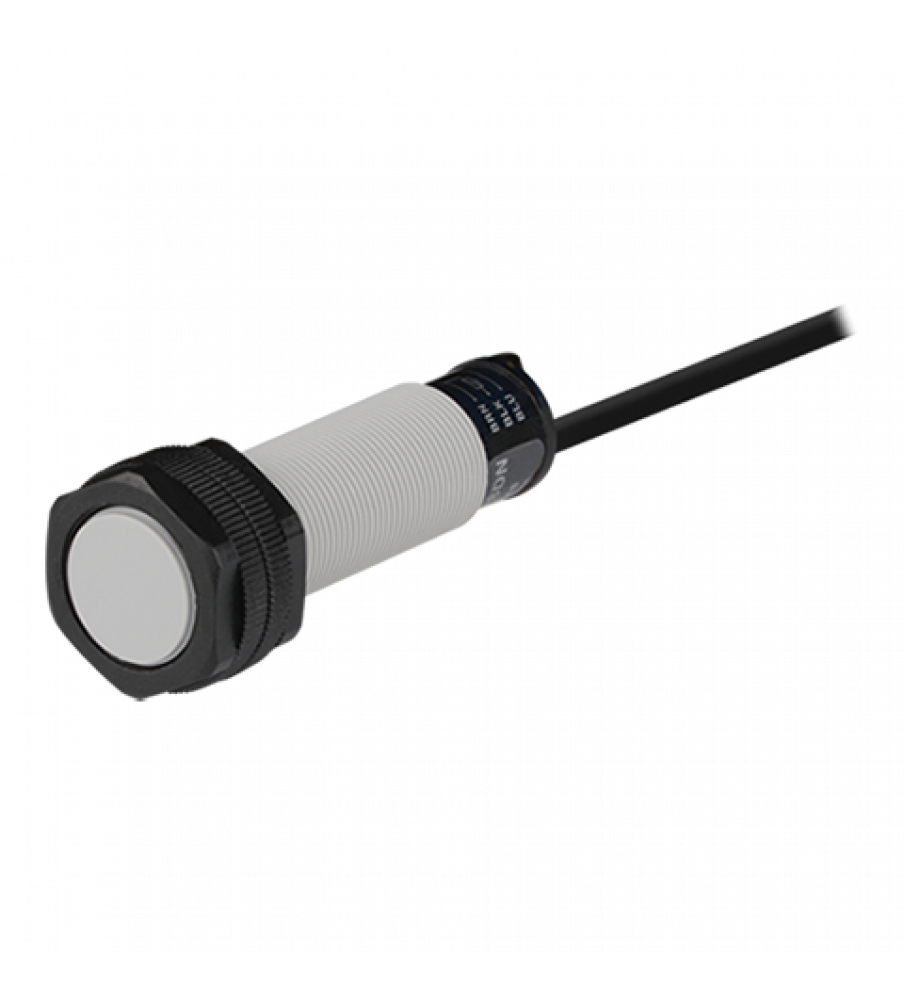

| Proximity Sensor | |
| Type | Electric capacitive (CR Series) |
| Sensing Distance | 8 mm |
| Header demension / square | 18 mm |
| Shield | Shield |
| Voltage | 100 - 240 VAC |
| Wire Type | AC 2-wire |
| Output Type | Normal Open |
| Frequency | 20 Hz |
| Housing Size | 18 x 71.5 mm |
