Data sheet?
| Wire type and power | DC 3-wire type 12-24VDC  |
|---|---|
| Sensing side diameter | M18 |
| Sensing distance | 5mm |
| Installation | Shield(flush) |
| Standard sensing target | 18?18?1mm(iron) |
| Response frequency | 500Hz |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Material | Brass(nickel plated) |
| Cable Standard/material | Standard connector |
| Protection structure | IP67 |
| Approval |  |
| Body length | Long body |
| Environment_Ambient temperature | -25 to 70?? storage: -30 to 80??/td> |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual voltage | Max. 1.5V |
| Weight | Approx. 85g(approx. 73g) |
| Proximity Sensor | |

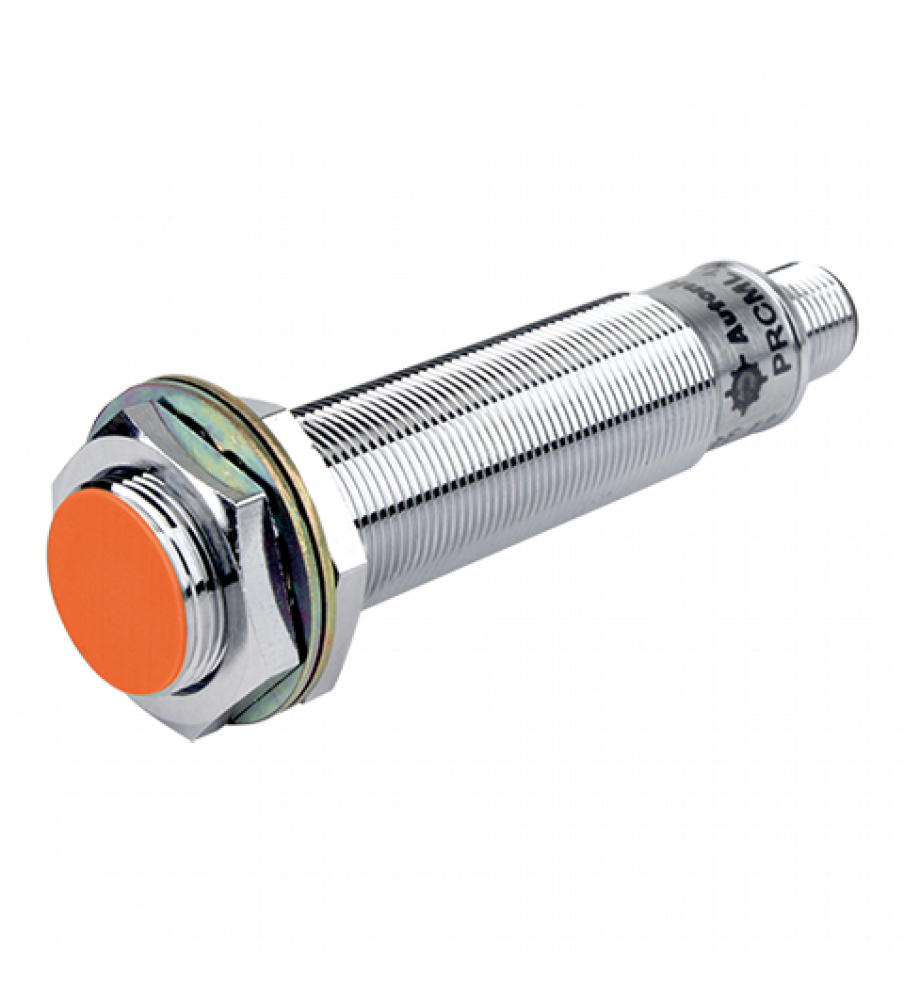

| Type | Cylindrical connector (PRCM Series) |
| Sensing Distance | 5 mm |
| Header demension / square | 18 mm |
| Shield | Shield |
| Connection Type | Connector |
| Voltage | 12 - 24 VDC |
| Wire Type | DC 3-wire |
| Output Type | PNP |
| Frequency | 500 Hz |
