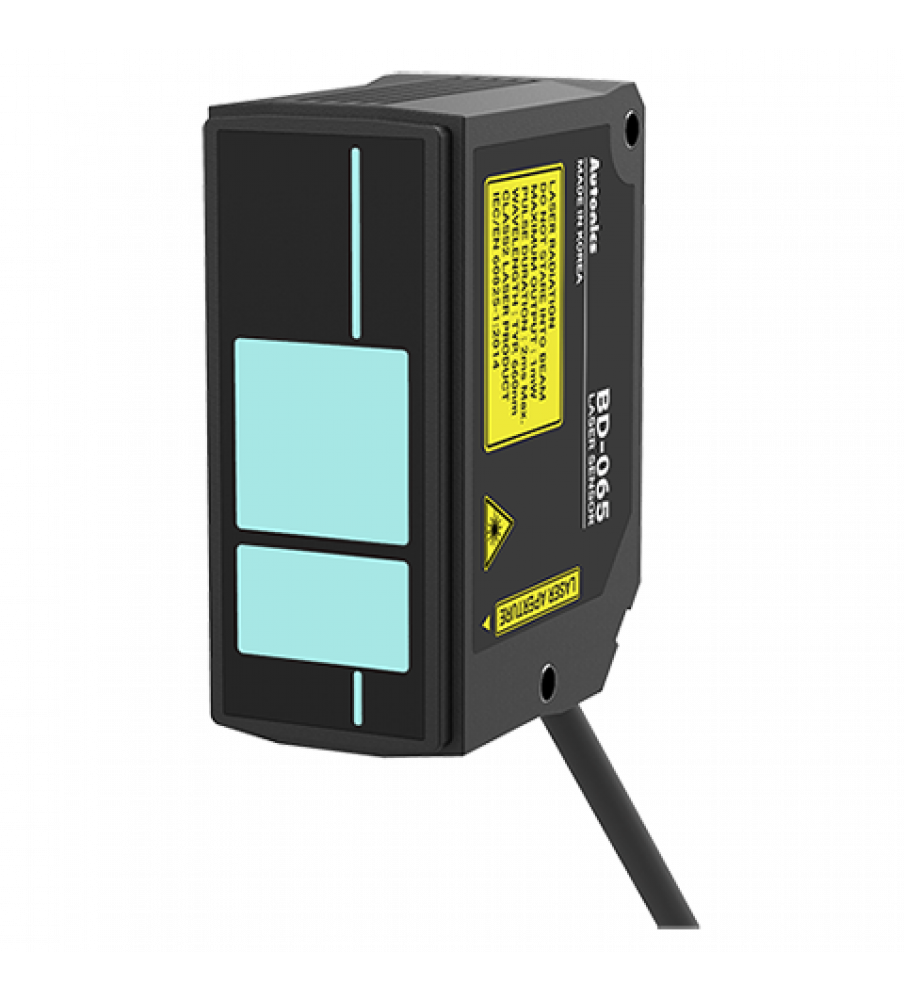

Data sheet?
| Spot diameter | Near(55mm): Approx. 360?1590 ??br>Reference(65mm): Approx. 290?1180 ??br>Far(75mm): Approx. 210?830 ??/td> |
|---|---|
| Resolution | 2??/td> |
| Reference distance | 65mm |
| Max. measurement range | 50 to 80mm |
| Linearity | 0.1% F.S. (in 55 to 75mm) |
| Temperature Characteristics | 0.06% F.S./??/td> |
| Power supply | Using power from the amplifier unit. |
| Light source | Red semiconductor laser (wavelength: 660nm, IEC 60825-1:2014) |
| Light Source_Optical method | Diffuse reflection |
| Light Source_Laser class | Class I (FDA(CDRH) CFR Part 1002) |
| Light Source_Output | Max. 1??/td> |
| Operation indicator | Power indicator: red LED, Laser emission indicator: green LED, NEAR/FAR indicator: green LED |
| Connection method | Connector type |
| Insulation resistance | Over 20M??(at 500VDC megger) |
| Noise immunity | Square shaped noise by noise simulator (pulse width: 1?? cycle: 10ms) ?500V |
| Dielectric strength | 1,000VAC 50/60Hz for 1 minute |
| Vibration | 1.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
| Shock | 300m/s? (approx. 30G) in each X, Y, Z direction for 3 times |
| Environment_Ambient illumination | Max. Incandescent lamp 10,000 lx |
| Environment_Ambient temperature | -10 to 50?? storage: -15 to 60??/td> |
| Environment_Ambient humidity | Under 85%RH, storage: under 85%RH |
| Protection structure | except connector of extension cable) |
| Material | Case: Polycarbonate, Sensing part: Glass, Cable: Polyvinyl chloride |
| Amplifier unit compatibility | BD Series amplifier unit: 1 |
| Accessories | Ferrite core (made by TDK co. ZCAT2132-1130), Mounting bracket, Bolt, Nut |
| Approval |   |
| Weight | Approx. 233g (approx. 68g) |
Tags: Sensor, Laser Displacement Sensor, Sensor head, Reference distance 65mm(Max.50-80mm), Cable connecter
